Checkweigher for Small Packages SC1-C-3523L1

Checkweigher for Small Packages SC1-C-3523L1

Model: SC1-C-3523L1

Item specifics

Weighting range: 1-1000g

Weighing speed: 1-35pieces/min

Weighting accuracy: ±0.02-0.1g

Weighting section size: L 350mm*W 230mm

Applicable product size: L≤300mm; W≤200mm

Weighing sections: Standard 1 stage, optional 2 stages

Review

Description

Detail Information

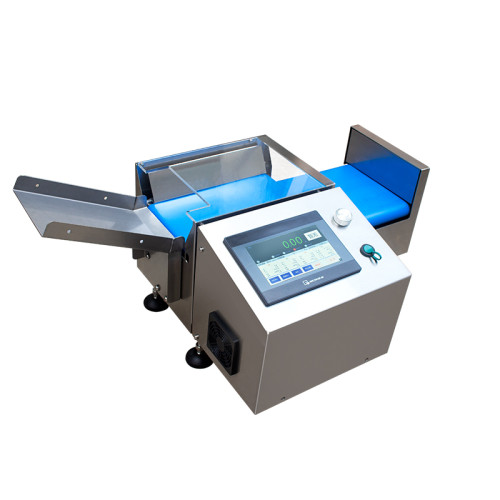

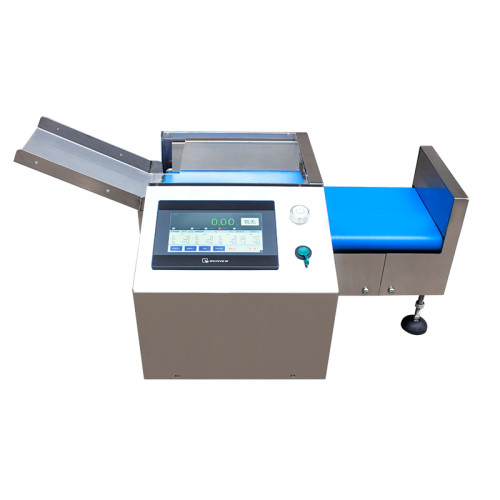

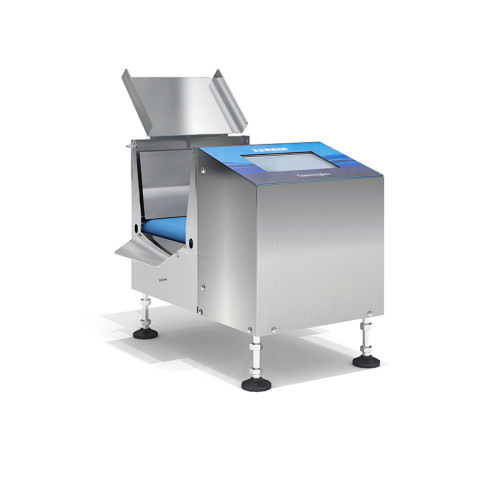

Checkweigher for Small Packages SC1-C-3523L1

Introduction

The SC1-C-3523L1 is a high-precision checkweigher for small packages, ideal for lightweight items like cosmetics, sachets, or pouches. This automatic checkweigher delivers fast, accurate results in compact spaces. As one of the best checkweigher machines in its class, it supports efficient inline inspection and quality control. Designed for modern production lines, this small in-motion checkweigher ensures every cosmetic product meets strict weight standards. A reliable and versatile checkweigher solution for small-scale, high-speed applications.

Checkweigher for Small Packages SC1-C-3523L1 Features

Engineered for Tiny Formats

Purpose-built for sachets, pouches, and small-format items where even minor weight deviations matter.

Ultra-Compact Line Integration

Slim design minimizes space usage, perfect for dense production layouts and retrofitting into legacy systems.

Precision at High Speeds

Delivers micron-level accuracy without slowing down the line—ideal for cosmetics, pharma, and lightweight foods.

Zero-Touch Product Switching

Digital recipe management enables instant changeover between SKUs, reducing setup time and operator workload.

Fail-Safe Weight Verification

Ensures every item is within target specs before packaging or labeling—no compromise on quality or compliance.

Ready for Full-Line Automation

Interfaces easily with upstream and downstream systems like cartoners, sealers, or pick-and-place units.

Checkweigher for Small Packages SC1-C-3523L1 Technical Parameters

Product model	SC1-C-3523T1
Weighting range	1-1000g
Weighting section size	L 350mm*W 230mm
weighing speed	1-35pieces/min
Case material	304 stainless steel
Display division	0.02g
Weighting accuracy	±0.02-0.1g
Applicable product size	L≤300mm; W≤200mm
Storage formula	100 types

Power supply	AC220V±10%
Data transmission	USB data export
weighing sections	Standard 1 stage, optional 2 stages
Rejection mode	Select left or right

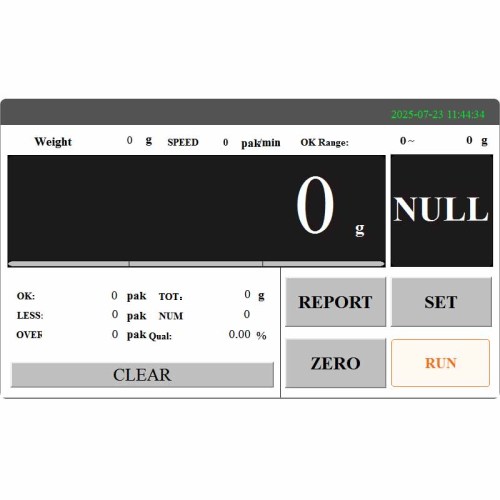

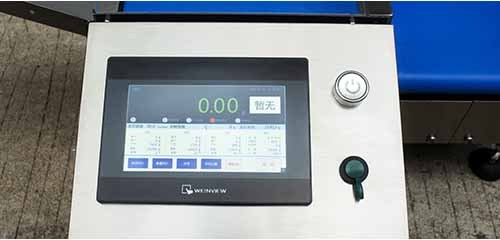

Operation screen	7-inch Kunluntong color touch screen
Control system	Samegram Online Weighing Control System V1.0.5
Other configurations	Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
