Light-Mid Weight Checkweigher for up to 15 kg SC2-8040L15

Light-Mid Weight Checkweigher for up to 15 kg SC2-8040L15

Model: SC2-8040L15

Item specifics

Weighting range: 0.05-15kg

Belt speed: 5-90m/min

Weighting accuracy: ±3-10g

Weighting section size: L 800mm*W 400mm

Applicable product size: L≤600mm; W≤400mm

Rejection mode: Customized

Review

Description

Detail Information

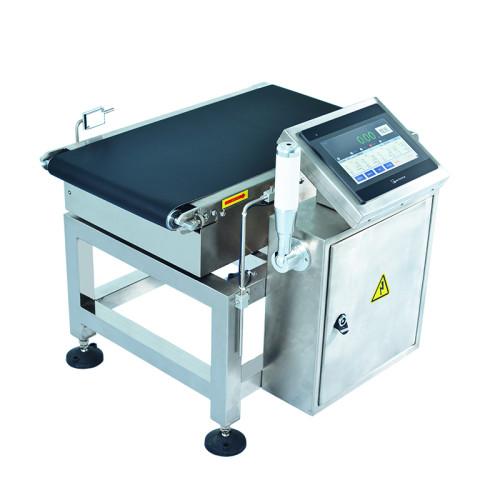

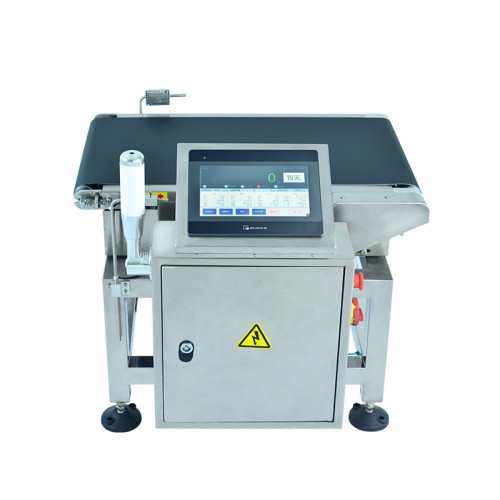

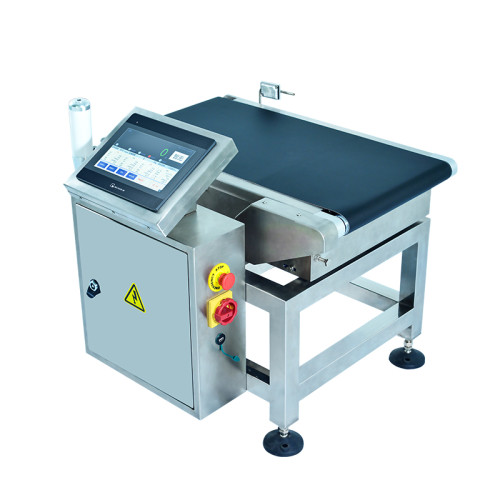

Light-Mid Weight Checkweigher SC2-8040L15

Introduction

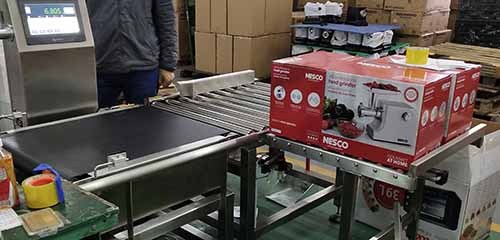

The SC2-8040L15 is a high-performance light-mid weight checkweigher designed for dynamic checkweighing of products up to 15 kg. As an advanced online dynamic checkweigher, it offers reliable, high-speed inspection for medium-to-heavy packages. This checkweigher high speed solution features precision sensors and a robust conveyor system, making it ideal for logistics, food, and manufacturing industries. The inline checkweighers ensure seamless integration into existing lines, while the smart weight checker machine automatically rejects out-of-spec products. With a flexible checkweigher system design, the SC2-8040L15 maximizes production efficiency and supports real-time quality control.

Light-Mid Weight Checkweigher SC2-8040L15

Features

Multi-Tier User Access Control

Supports three operation levels with custom password settings.

Protects configuration integrity in weigh price labeller systems.

Advanced Data Logging Capabilities

Built-in computing system stores detailed inspection results.

Ideal for audit tracking and weigh price labeling records.

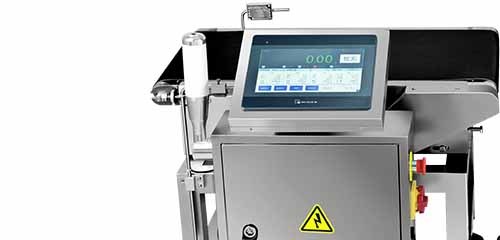

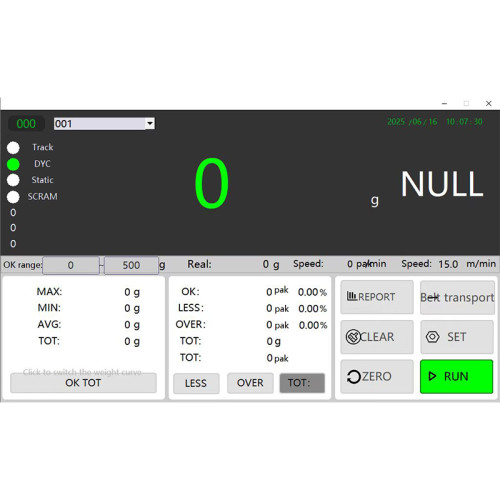

Ergonomic Touchscreen Interface

Responsive HMI simplifies weighing labeling operations.

Reduces training time and human error.

Adjustable-Speed Conveyor Motor

Inverter-driven motor enables on-demand speed regulation.

Supports syncing with automatic price weigh label machine workflows.

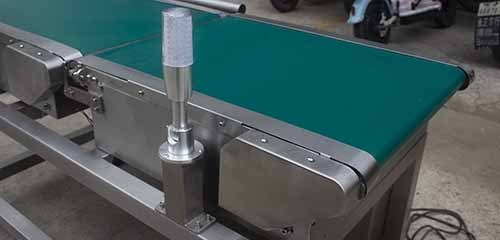

Removable belt

Modular design allows fast disassembly and cleaning.

Boosts hygiene and reduces downtime in food-grade settings.

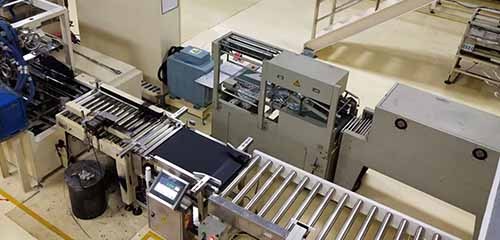

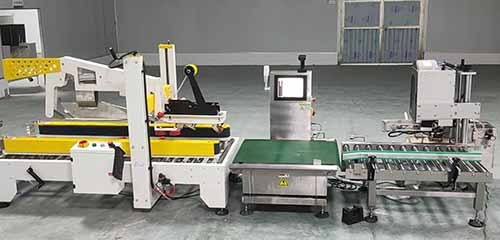

Light-Mid Weight Checkweigher can be Seamlessly Integrated with Software

Seamless Software Integration

Compatible with carton weigh label software and ERP/MES platforms.Streamlines automatic weigh price label systems from weighing to printing.

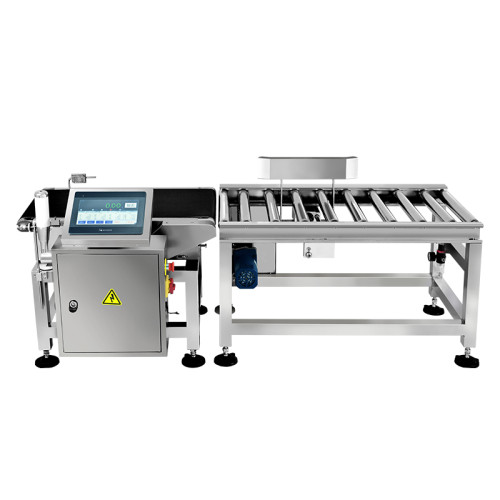

Light-Mid Weight Checkweigher SC2-8040L15

Technical Parameters

Product model	SC2-8040L15
Weighting range	0.05-15kg
Weighting section size	L 800mm*W 400mm
Belt speed	5-90m/min
Case material	304 stainless steel
Display division	1g
Weighting accuracy	±3-10g
Applicable product size	L≤600mm; W≤400mm
Storage formula	100 types

Power supply	AC220V±10%
Data transmission	USB data export
Sorting section	Standard 1 section.optional 3 section
Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Push rod, swing arm, drop, up and down flip, etc. (customizable)
Optional function	Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
