Dual Lane Checkweigher SCP2

Model: SCP2

Item specifics

Weighting range: Non-standard customization

Belt speed: 5-90m/min

Weighting accuracy: Non-standard customization

Review

Description

Detail Information

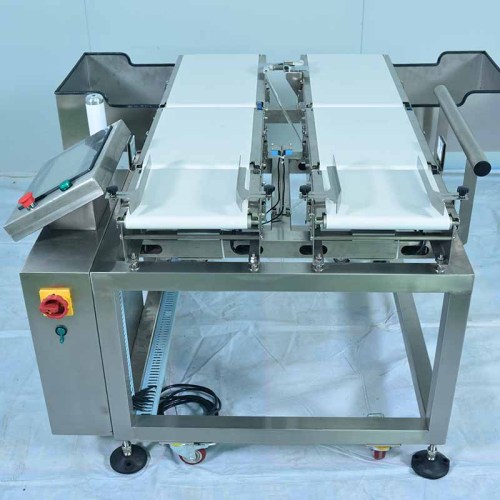

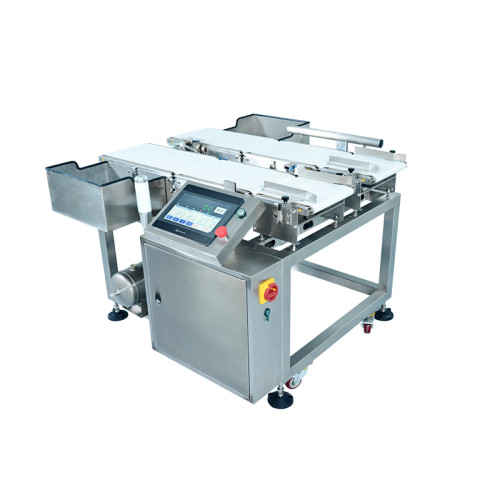

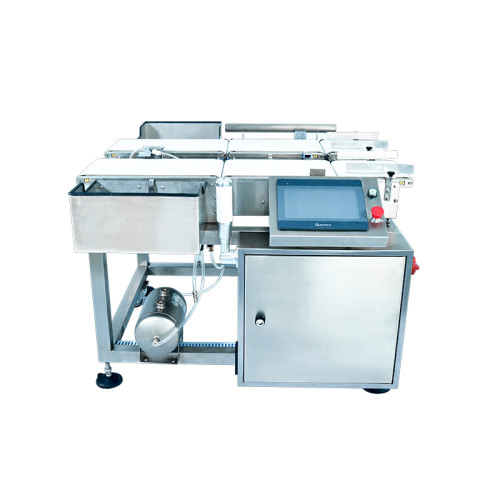

Dual Lane Checkweigher SCP2

Introduction

The SCP2 Dual Lane Checkweigher is a high-efficiency dynamic checkweigher for precision weighing, designed to inspect two product lines simultaneously without interference. With two independently controlled weighing channels, it delivers optimized throughput and accuracy. Built as modular checkweighing equipment, it adapts easily to varied production environments. Ideal for food, pharma, and FMCG sectors, this dual lane checkweigher is made of full stainless steel with IP65 protection. Featuring ERP/MES connectivity, multilingual UI, and extensive data logging, the SCP2 sets new standards for checkweighing scales, checkweigher equipment, and advanced food checkweighers.

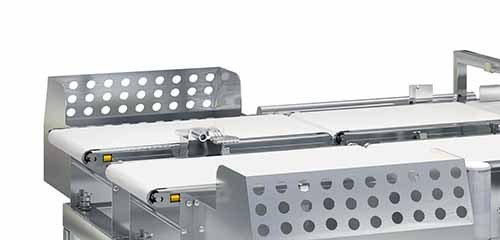

Dual Lane Checkweigher SCP2

Features

Dual Independent Lanes

Two parallel weighing channels work simultaneously, enabling efficient checkweighing without cross-interference on high-speed lines.

Modular Design Flexibility

The modular checkweighing structure allows easy integration into complex production setups and future system expansion.

Industrial-Grade Construction

Crafted from full 304 stainless steel with IP65 waterproof rating, designed to withstand harsh food and industrial environments.

Advanced Data Management

Stores up to 100 product presets and 30,000 weight records; supports Excel export for full traceability and quality control.

Smart Connectivity & Control

Equipped with RS232/485 and Ethernet ports, ready for ERP/MES integration, with I/O options for remote production line control.

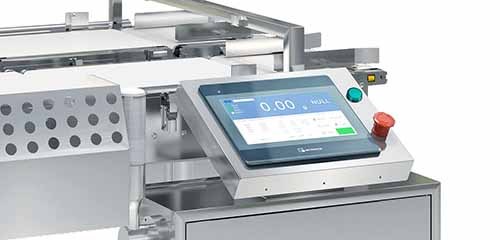

User-Centric Operation

Touchscreen interface with multi-language support and three-tier user access ensures both usability and security on factory floors.

Dual Lane Checkweigher SCP2

Technical Parameters

Product model	SCP2
Weighting range	Non-standard customization
Weighting section size	Non-standard customization
Belt speed	5-90m/min
Air pressure interface	Φ8mm
Case material	304 stainless steel
Conveying direction	Facing the machine, left in and right out
Display division	0.02g
Weighting accuracy	Non-standard customization
Applicable product size	Non-standard customization
Storage formula	100 types

Power supply	AC220V±10%
Air source	0.5-0.8MPa
Data transmission	USB data export
Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable)
Optional function	Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling
Operation screen	10-inch Weiluntong color touch screen
Control system	Samegram online weighing control system V1.0.5
Other configurations	Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
