Model
SC1-5040L5

Item specifics

Weighting range
1-5000g
Belt speed
5-90m/min
Weighting accuracy
±05-3g
Weighting section size
L 300mm*W 400mm
Applicable product size
L≤200mm; W≤120mm
Rejection mode
Customized

Review

Description

Detail Information

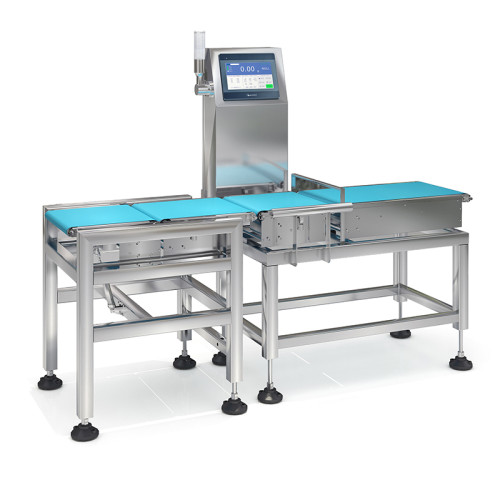

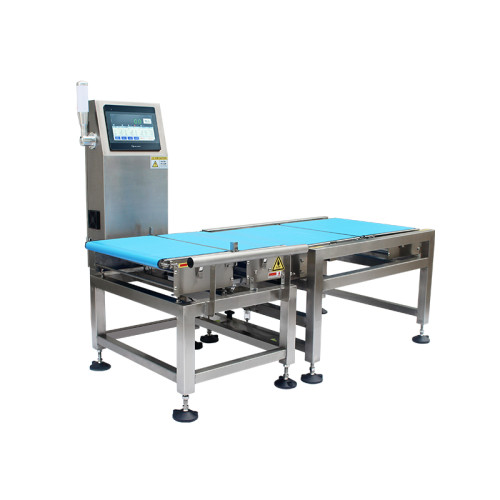

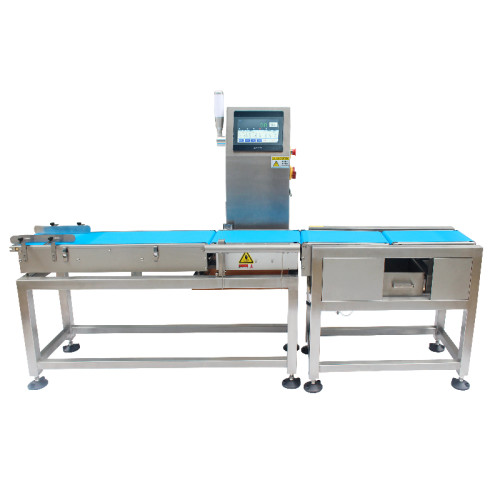

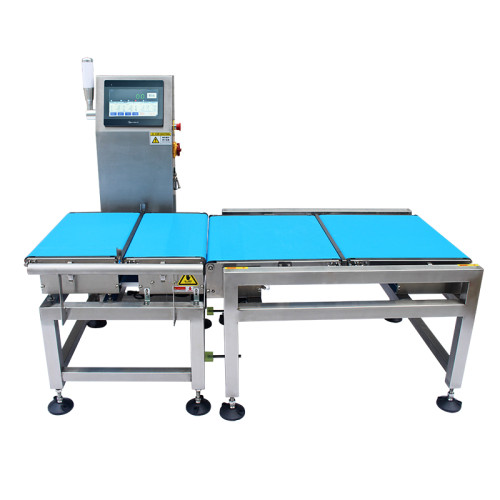

Hi Speed Dynamic Checkweigher SC1-5040L5

Introduction

The SameGram SC1-5040L5 is a dynamic checkweighing solution tailored for fast-moving production and logistics lines. Designed to ensure accuracy even at high speeds or high vibration conditions, it combines a rugged industrial design with advanced vibration compensation (VCM) technology to provide stable and reliable weight control, making it ideal for pharmaceutical, food packaging and light industrial manufacturing.

Hi Speed Dynamic Checkweigher SC1-5040L5

Features

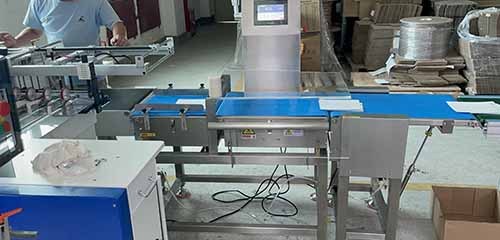

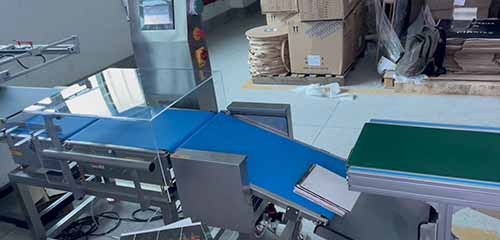

Hi Speed Checkweigher Tailored for the print industry, built to serve beyond

Tailored for the print industry, built to serve beyond

With proven performance in detecting page count errors in books and magazines, this system also fits seamlessly into packaging lines across food, pharma, electronics, and consumer goods.

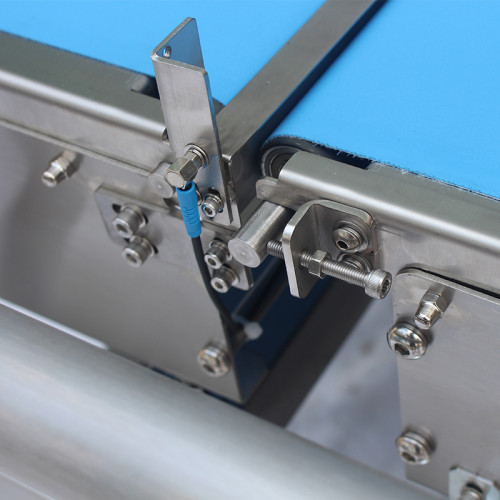

high speed checkweigher's Flap-style rejection ensures both speed and protection

Flap-style rejection ensures both speed and protection

The integrated flipper rejector handles high-throughput rejection with care, preserving product integrity even at peak line speeds.
checkweigher high speed and Structured data management for smarter operations

Structured data management for smarter operations

Tracks and retains up to 30,000 entries while enabling one-click export of production logs in Excel format—streamlining batch QA and recordkeeping.

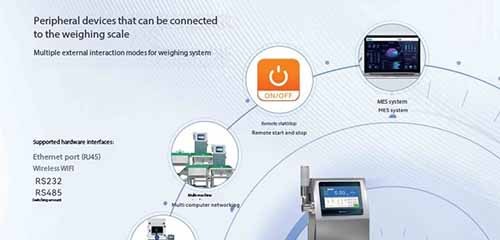

hi speed checkweigher co with Industrial-grade connectivity for automation ecosystems

Industrial-grade connectivity for automation ecosystems

Offers native support for Ethernet and serial protocols, enabling real-time synchronization with MES and ERP platforms.
hi-speed checkweigher has Operator-centered design with global adaptability

Operator-centered design with global adaptability

Touchscreen control supports multi-level user permissions and multi-language UIs, offering both simplicity and control for diverse factory teams.

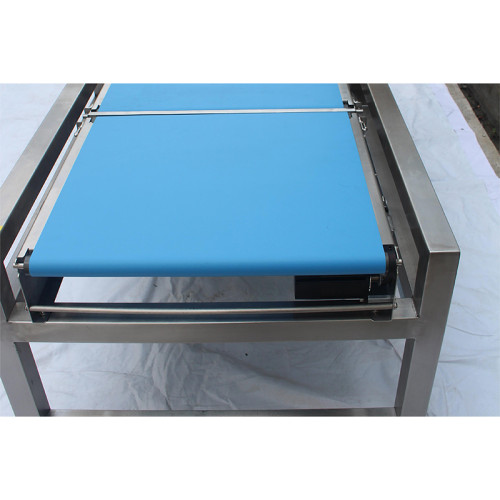

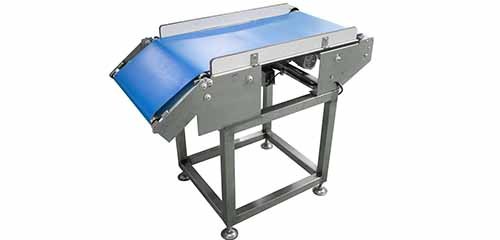

hi-speed checkweighers Engineered to integrate and protect

Engineered to integrate and protect

Designed with adjustable motors, emergency stop mechanisms, and safety guarding, it fits easily into automated packaging setups including cartoners, baggers, and fillers.

Hi Speed Dynamic Checkweigher SC1-5040L5 Technical Parameters

Product model
SC1-5040L5
Weighting range
1-5000g
Weighting section size
L 300mm*W 400mm
Belt speed
5-90m/min
Air pressure interface
Φ8mm
Case material
304 stainless steel
Conveying direction
Facing the machine, left in and right out
Display division
0.1g
Weighting accuracy
±05-3g
Applicable product size
L≤200mm; W≤120mm
Storage formula
100 types
Power supply
AC220V±10%
Air source
0.5-0.8MPa
Data transmission
USB data export
Alarm mode
Sound and light alarm and automatic rejection
Rejection mode
Push rod, swing arm, drop, up and down                 replication, etc. (customizable)
Optional function
Real-time printing, code reading and sorting,         online code spraying, online code reading, online  labeling
Operation screen
10-inch Weiluntong color touch screen
Control system
Samegram online weighing control system V1.0.5
Other configurations
Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo se
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.

File Downloads

For more product related parameter files, please contact us.
SameGram Product Brochure（18.62 MB）

High Speed Dynamic Checkweigher Applications

hi speed checkweigher to Pharmaceuticals

Snacks

Ensures each snack pouch meets the target weight, detecting underfilled or overfilled bags at high speed to maintain product consistency and minimize giveaway.
High Speed Dynamic Checkweigher to Facial Mask

Facial Mask

Checks individual mask packages for missing or excess product liquid by weight variance, ensuring each unit complies with strict cosmetic industry quality standards.
hi speed checkweigher to Small Card

Small Card

Verifies the weight of card bundles or individual units to detect missing or extra pages/cards, ideal for high-volume printing operations such as game cards or promotional inserts.
Detail Information

Want a Custom Configuration for Your Production Line?

Contact us to learn more about how the High Speed ​​Dynamic Checkweigher CW-S-5040L5 can simplify your quality assurance process.
