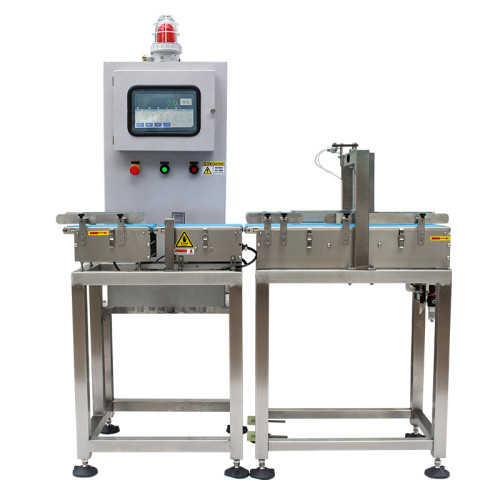

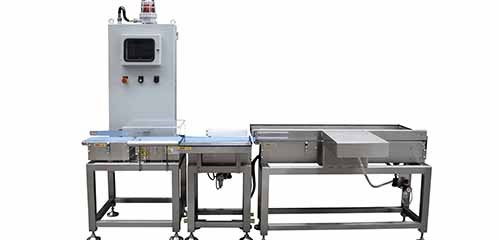

Dynamic Checkweigher for Ex Zones SC-EP

Model: SC-EP

Item specifics

Weighting range: Non-standard customization

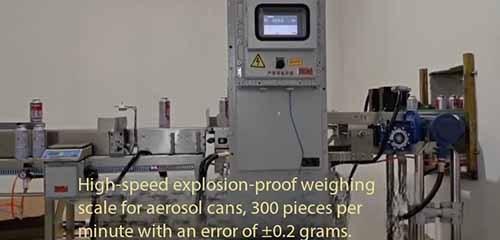

Weighing speed: Up to 300 pcs/min

Weighting accuracy: ±0.2g

Review

Description

Detail Information

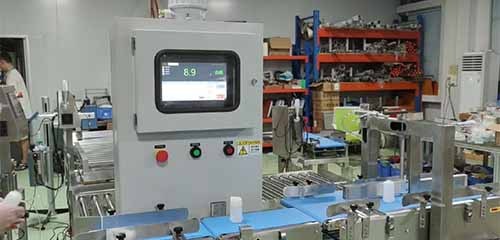

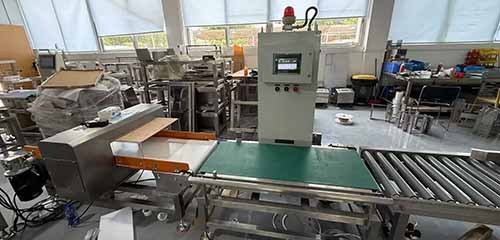

Dynamic Checkweighers for Ex Zones SC-EP

Introduction

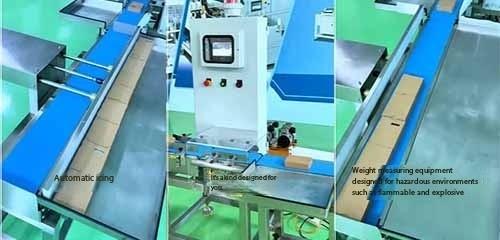

The SC-EP is a specialized customization dynamic checkweigher designed for precision checkweighing systems in hazardous environments. It integrates seamlessly into production lines without layout modification, making it ideal for colorful box packaging in toys, small appliances, and daily instruments. With compact size and robust IP65 checkweigher protection, it suits demanding zones in chemical, food, gas, and oil industries. This hi-speed checkweigher minimizes manual contact and enhances operator safety. As a reliable belt checkweigher and advanced scale supplier solution, SC-EP ensures safety, quality, and operational efficiency even in explosive or corrosive conditions.

Dynamic Checkweighers for Ex Zones SC-EP

Features

Explosion-Proof Design

Engineered for dynamic parcel weighing in hazardous areas.

Ideal for zones with explosive gases, flammable dust, or corrosive vapors.

Overheat Protection

Built-in thermal sensors automatically cut power if motor temperature exceeds safe limits, preventing fire or explosion risks.

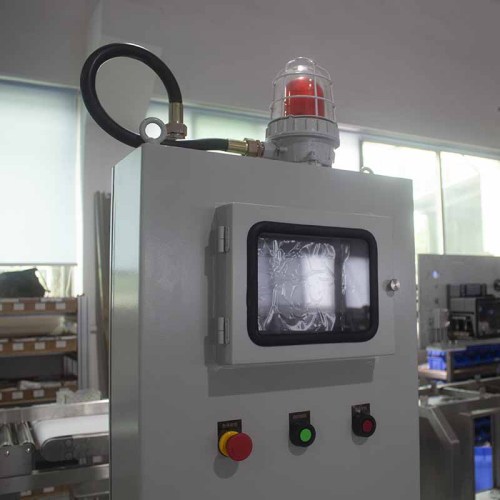

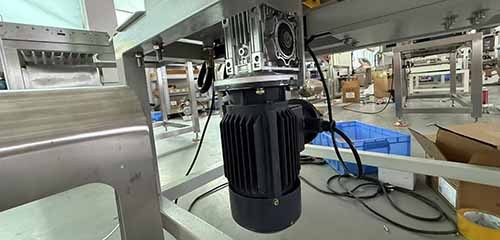

Explosion-Proof Motor Design

Sealed, spark-suppressed motor structure ensures safe operation in hazardous areas with flammable gas or dust present.

Compact, Space-Saving Structure

Small footprint fits tight industrial environments.

Efficient use of space without sacrificing performance.

Versatile Industry Application

Trusted in chemical, gas, oil, and food industries.

Suitable for any site requiring explosion-proof parcel weighing scale.

Seamless System Integration

Integrates easily with existing weighing, sorting, or labeling systems.

Perfect for inline scales for weighing parcels

Dynamic Checkweighers for Ex Zones SC-EP

Technical Parameters

Product model	SC-EP
Weighting range	Non-standard customization
Weighting section size	Non-standard customization
Belt speed	5-90m/min
Air pressure interface	Φ8mm
Case material	304 stainless steel
Conveying direction	Facing the machine, left in and right out
Display division	0.02g
Weighting accuracy	Non-standard customization
Applicable product size	Non-standard customization
Storage formula	100 types

Power supply	AC220V±10%
Air source	0.5-0.8MPa
Data transmission	USB data export

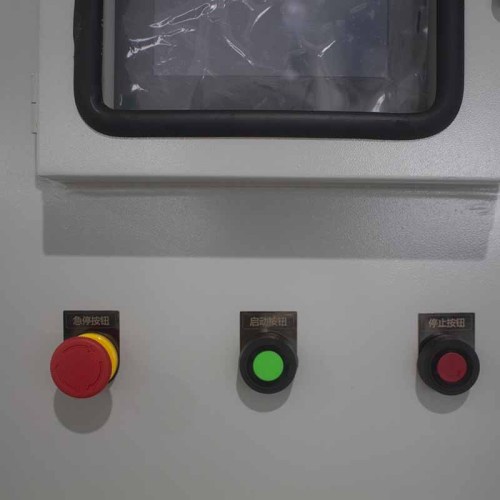

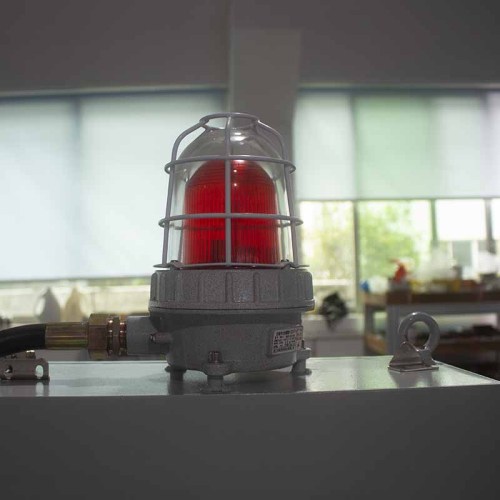

Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable)

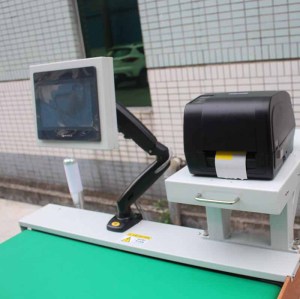

Optional function	Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling
Operation screen	10-inch Weiluntong color touch screen
Control system	Sartori online weighing control system V1.0.5

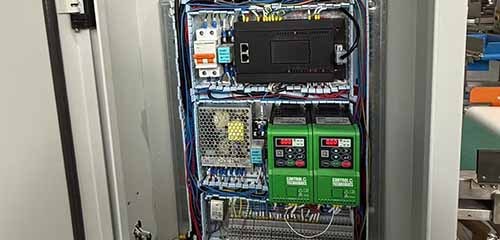

Other configurations	Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
