High Accuracy Checkweigher SC1-H-3512L1
- Model
- SC1-H-3512L1
Item specifics
- Weighting range
- 1-1000g
- Belt speed
- 5-90m/min
- Weighting accuracy
- ±0.03-0.1g
- Weighting section size
- L 350mm*W 120mm
- Rejection mode
- Customized
- Applicable product size
- L≤200mm; W≤120mm
Review
Description
Detail Information

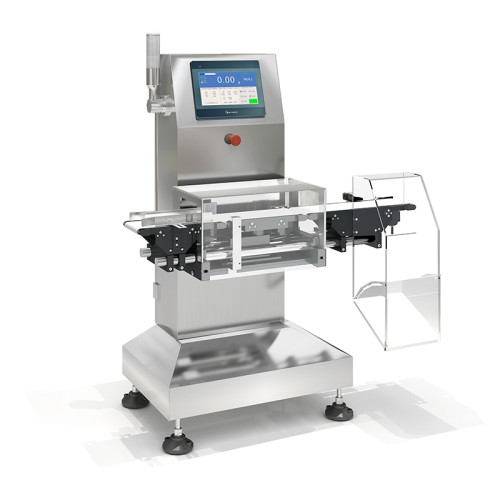

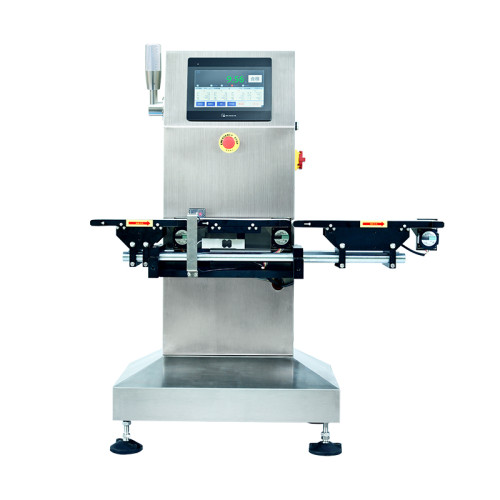

High Accuracy Checkweigher SC1-H-3512L1
Introduction
The SC1-H-3512L1 is a high performance checkweigher designed for precision motion checkweighing in fast-paced production environments. This intelligent dynamic checkweigher offers exceptional accuracy and speed, making it ideal for small packages or high-value items. As part of advanced high speed checkweigher systems, it ensures inline weight inspection without interrupting flow. With robust design and fast response, this inline checkweigher delivers stable performance across variable loads—perfect for demanding, real-time quality control.

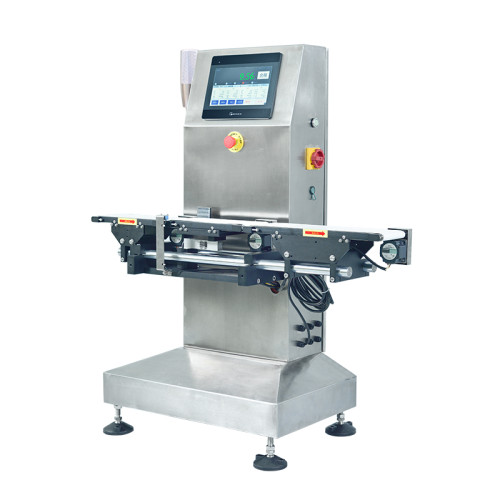

High Accuracy Checkweigher SC1-H-3512L1
Features
High Accuracy Checkweigher SC1-H-3512L1
Technical Parameters
| Product model | SCW3512L1 |
| Weighting range | 1-1000g |
Weighting section size | L 350mm*W 120mm |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
| Case material | 304 stainless steel |
Conveying direction | Facing the machine, left in and right out |
Display division | 0.02g |
| Weighting accuracy | ±0.03-0.1g |
| Applicable product size | L≤200mm; W≤120mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
| Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |

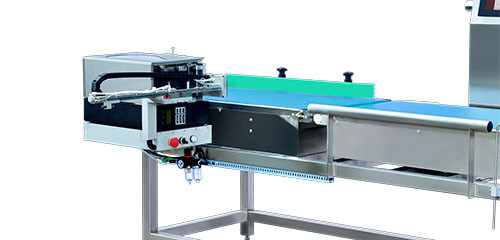

Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
| Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
