High‑Speed Dynamic Weighing Scale SC3-L-12080S60
- Model
- SC3-L-12080S60
Item specifics
- Weighting range
- 1-60kg
- Belt speed
- 5-120m/min
- Weighting accuracy
- 10-30g
- Weighting section size
- L 1200mm*W 800mm
- Applicable product size
- L≤800mm; W≤800mm
- Rejection mode
- Customized
Review
Description
Detail Information

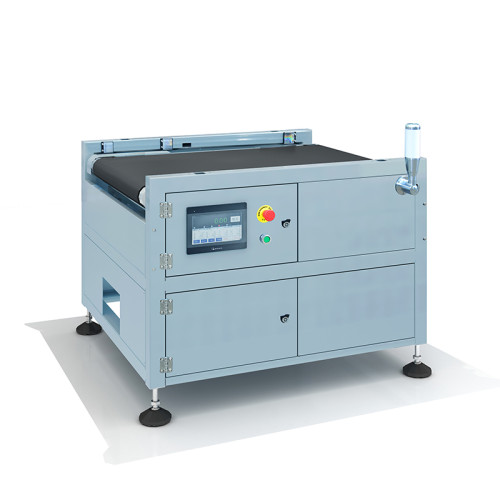

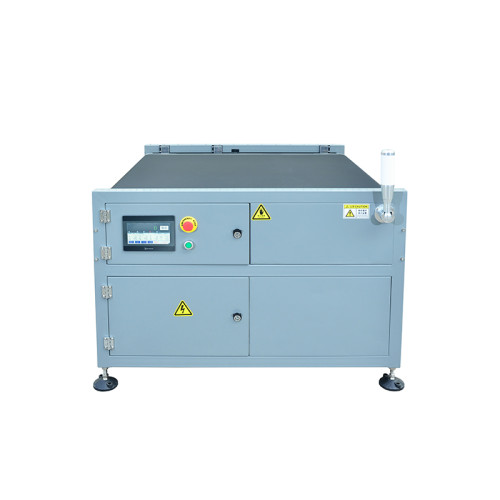

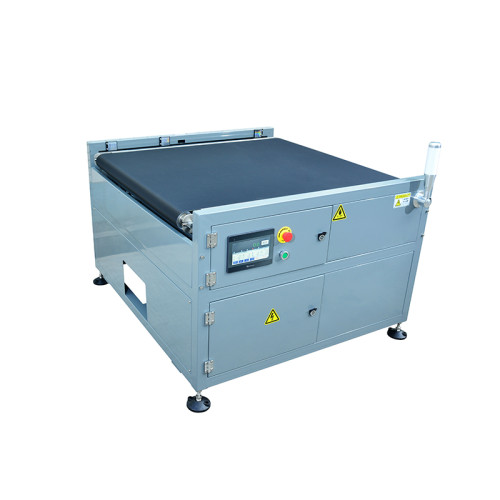

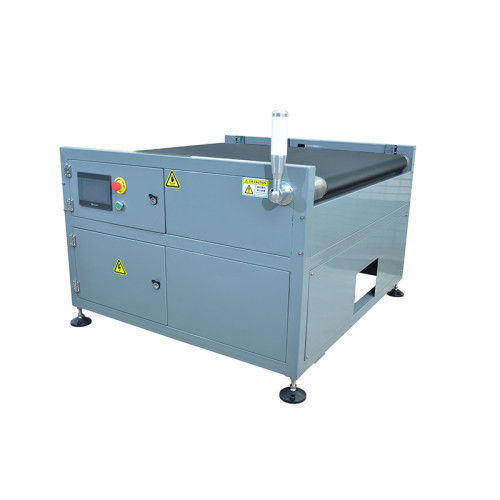

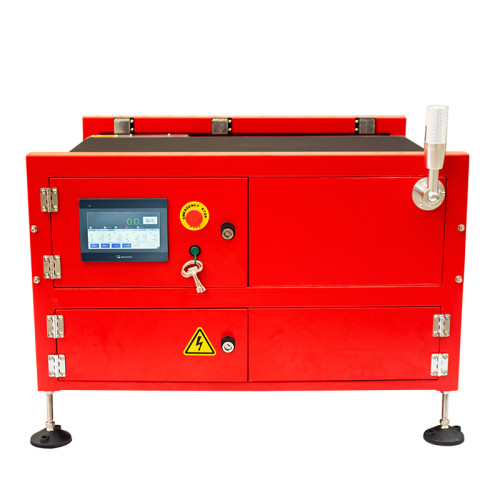

High‑Speed Dynamic Weighing Scale SC3-L-12080S60
Introduction
The SC3-L-12080S60 is a heavy-duty logistics checkweigher built to weigh parcel loads up to 60kg with high precision. As one of the best parcel weighing scales, it's designed to optimize weighing parcel logistics operations in distribution centers and freight hubs. Its wide platform and robust logistics scales architecture support bulky, irregular packages. This system excels at weigh out logistics accuracy while maintaining speed and throughput. Fully compatible with scanners and sorters, it simplifies large-scale shipping workflows and sets the standard for weighing scales parcels in industrial settings.
High‑Speed Dynamic Weighing Scale SC3-L-12080S60 Features
High‑Speed Dynamic Weighing Scale SC3-L-12080S60
Technical Parameters
| Product model | SC3-L-12080S60 |
| Weighting range | 1-60kg |
Weighting section size | L 1200mm*W 800mm |
Belt speed | 5-120m/min |
Case material | Carbon steel spray painting |
Display division | 1g |
| Weighting accuracy | 10-30g |
| Applicable product size | L≤800mm; W≤800mm |
Storage formula | 1 type |
| Power supply | AC220V±10% |
Data transmission | USB data export |
Sorting section | Standard 1 section |
Rejection mode | Push rod type, lever type, balance wheel optional |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |

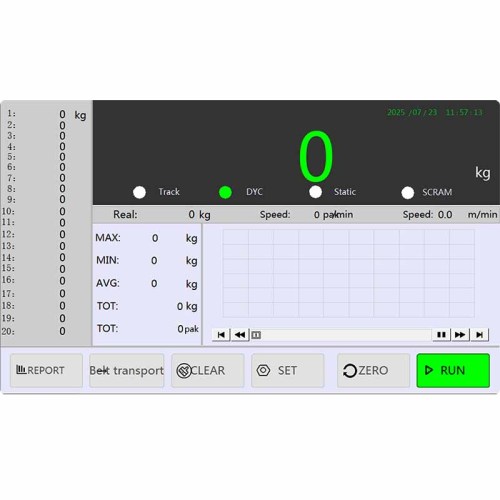

Operation screen | 7-inch Kunluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
