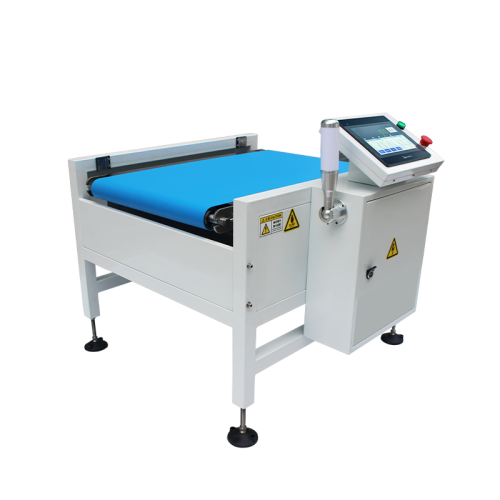

End-of-line Checkweigher SC3-10060L50
- Model
- SC3-10060L50
Item specifics
- Weighting range
- 0.05-50kg
- Belt speed
- 5-90m/min
- Weighting section size
- L 1000mm*W 600mm
- Weighting accuracy
- ±5-20g
- Rejection mode
- Customized
- Applicable product size
- L≤800mm; W≤600mm
Review
Description
Detail Information

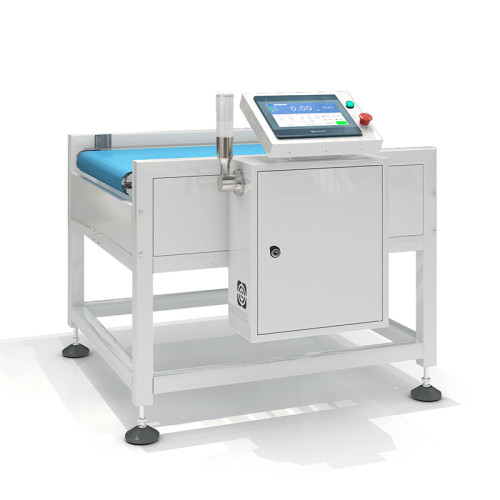

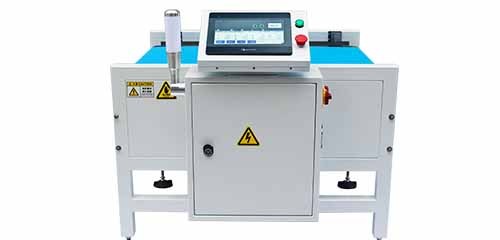

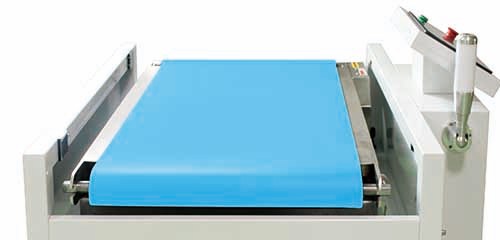

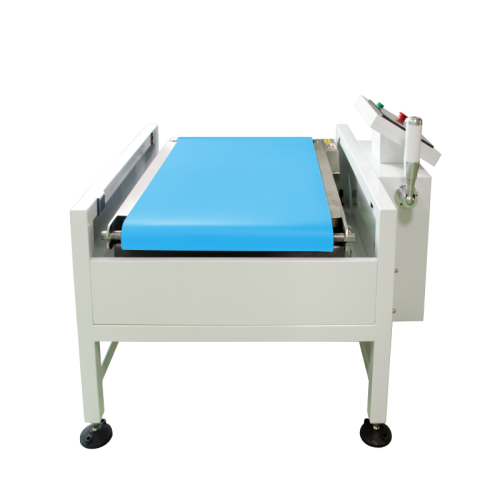

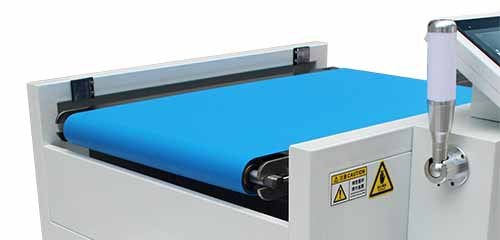

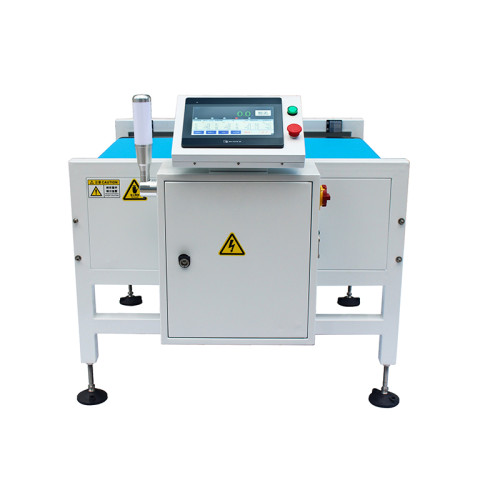

End-of-line Checkweigher SC3-10060L50
Introduction
The SC3-10060L50 is a robust dynamic checkweigher machine designed for large-volume packaging. As a trusted solution from a leading hi speed checkweigher co, it excels in high-speed, heavy-duty environments. This in-motion checkweigher accurately inspects product weights at the final stage of your production line, acting as a reliable end of line checkweigher. Built with a high-load conveyor and precise sensors, it integrates a smart checkweigher with rejector system for automatic removal of off-spec items. Ideal as a heavy automatic checkweigher, it delivers consistent results in demanding industrial settings.
End-of-line Checkweigher SC3-10060L50
Features

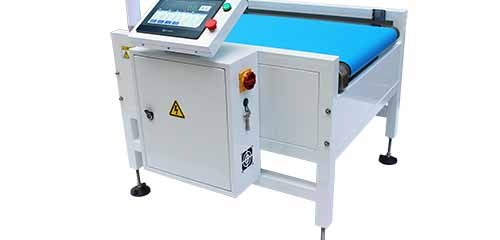

End-of-line Checkweigher SC3-10060L50
Technical Parameters
| Product model | SC3-10060L50 |
| Weighting range | 0.05-50kg |
Weighting section size | L 1000mm*W 600mm |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
| Case material | Carbon steel spary painting |
Conveying direction | Facing the machine, left in and right out |
Display division | 1g |
| Weighting accuracy | ±5-20g |
| Applicable product size | L≤800mm; W≤600mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
| Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |
Rejection mode | Push rod type, swing wheel type, top lifting hanging type optional |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |

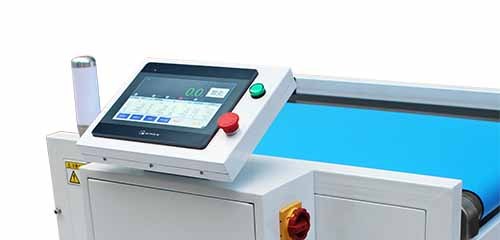

Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
| Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
