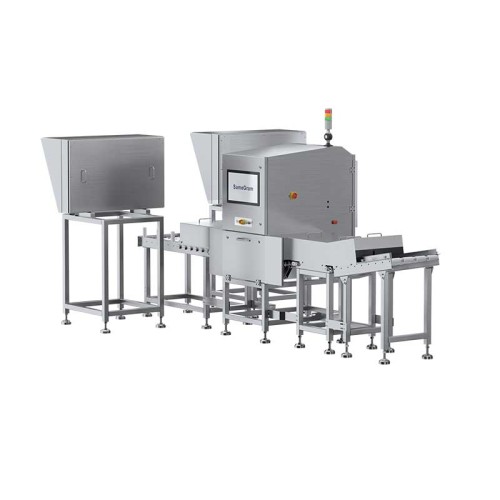

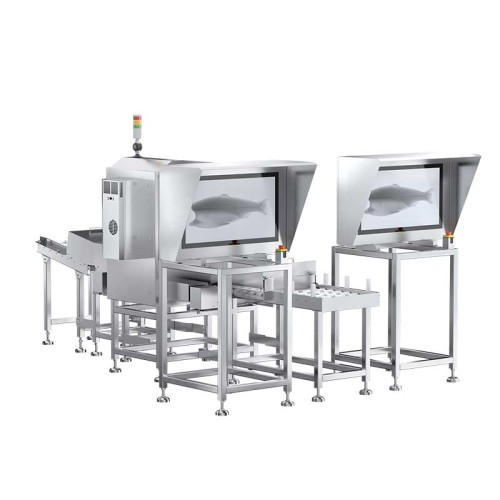

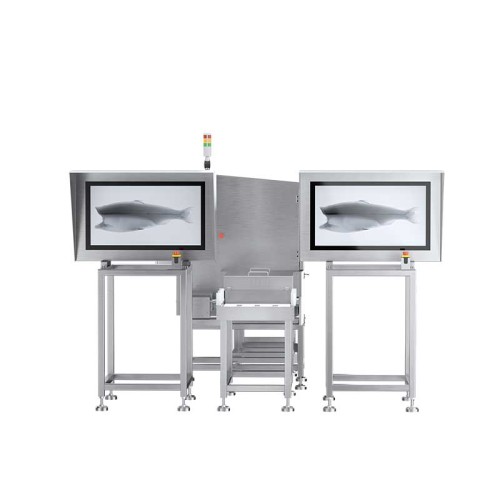

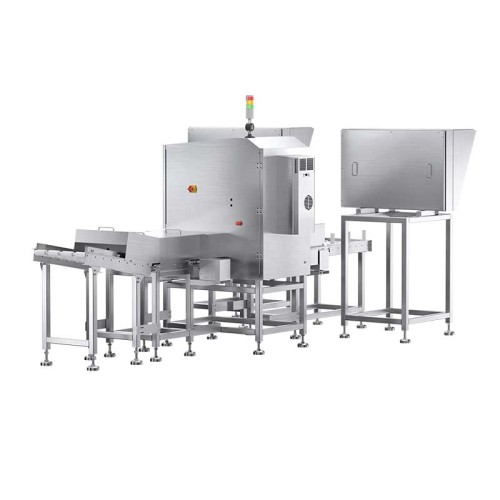

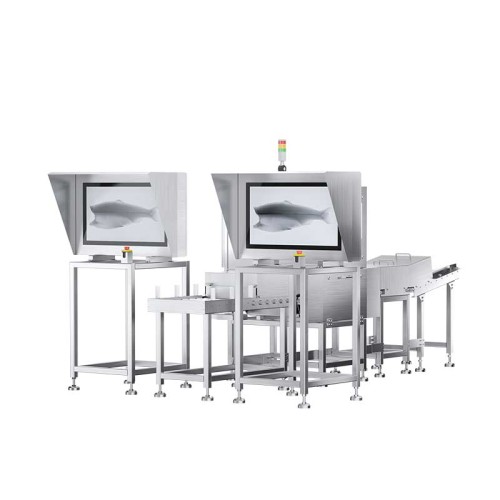

X-ray Inspection Systems Fish Bone X-ray Inspection System CSS-F-4610
Introduction
Ensure your seafood is perfectly safe and bone-free with our advanced x ray inspection systems for fish. Our industry-leading fish bone x-ray inspection system is engineered with a specialized AI algorithm (Diffusion-SvFisher) to solve the critical challenge of detecting tiny, non-calcified bones down to 0.05mm. This powerful x ray inspection system functions as the ultimate x ray machine food inspection solution for fish processors. The fish x-ray inspection system features a 4K display to pinpoint bone locations, assisting manual removal for zero-residue quality. Trust our dedicated x ray inspection systems to protect your brand and deliver the highest quality fish products to the market.
X-ray Inspection Systems Fish Bone X-ray Inspection System CSS-F-4610 Features
Fish Bone X-ray Inspection System CSS-F-4610 Technical Parameters
| Model | XSS-F4610 | ||||
| X-ray Source (Unit: W) | 350W beryllium window | ||||
| Inspection Accuracy | Stainless steel wire 0.05*6mm (unloaded, subject to change depending on the sample, actual test results shall prevail) | ||||
Operating Software | Self-developed Sooview detection software | ||||
Human Machine lnterface | 21.5-inch/43-inch high-definition monitor | ||||
Conveyor Belt Speed | 10-25m/min | ||||
Inspection Weight | <10Kg | ||||
Inspection Dimensions | 450mm*100mm | ||||
Power Supply | AC220V、2.1kvA、50Hz | ||||
Temperature and Humidity | Ambient temperature -10~45'℃,relative humidity 30~85%(non-condensing) | ||||
Waterproof Rating | Conveyor is lP66, other parts are lP65 | ||||
Equipment Materials | 316Lstainless steel, brushed finish | ||||
File Downloads
For more product related parameter files, please contact us.
