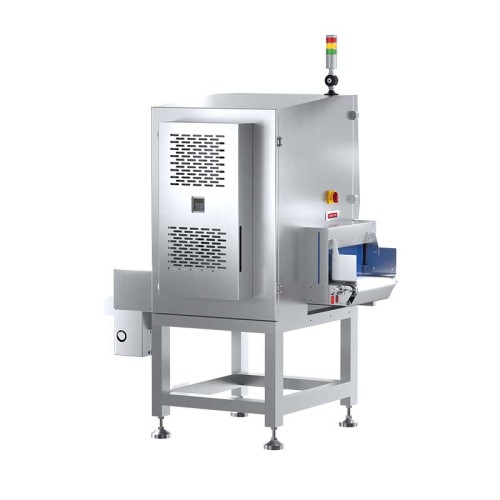

High-precision X-ray Inspection Systems for Packaged Products CSS Series
- Model
- CSS series
Review
Description
Detail Information

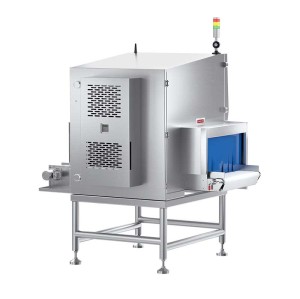

Standard Machine for X-ray Inspection System of Bagged Products CSS series
Introduction
Discover our advanced industrial x-ray inspection systems and high-performance x ray inspection machines, engineered for superior quality control. We provide specialized food x-ray inspection systems and versatile x-ray inspection systems for packaged products. Our solutions feature a cutting-edge real time x ray inspection system, powered by a unique ZeroShot-SvDetector deep learning algorithm for unmatched accuracy. This system delivers immediate, high-precision detection (down to 0.2mm) of foreign bodies like metal, glass, and hard plastics. With robust 304 stainless steel construction and 4G remote support, we ensure the highest safety and operational uptime for your production line.
X-ray Inspection System of Bagged Products CSS series Features
X-ray Inspection System of Bagged Products CSS Series Technical Parameters
| Model | XSS-2410 | XSS-4016 | XSS-6030 | XSS-6040 | XSS-7040 |
| X-ray Source (Unit: W) | 210 | 240 | 240/350 | 240/350 | 350 |
| Detector Resolution | 0.4mm (unloaded; actual accuracy may vary depending on the sample material and is subject to testing) | ||||
| Inspection Accuracy | SUS sphere:0.4mm,glass:1.0mm, ceramic: 1.0mm, SUS wire: 0.2*5mm | ||||
Operating Software | Self-developed Sooview detection software | ||||
Human Machine lnterface | 21.5-inch touchscreen | ||||
Conveyor Belt Speed | 10-60 m/min | ||||
Inspection Weight | <10Kg | ||||
Inspection Dimensions | 240*50mm | 400*120mm | 600*200mm | 600*300mm | 700*300mm |
Power Supply | AC 220V2.0kw 50hz | ||||
Temperature and Humidity | Ambient temperature 0~45'C,relative humidity 30~85%(non-condensing) | ||||
Waterproof Rating | Conveyor is lP66, other parts are lP54 | ||||
Equipment Materials | 304 stainless steel, brushed finish | ||||
File Downloads
For more product related parameter files, please contact us.
