Dynamic Roller Checkweigher SC3-10060L30

Dynamic Roller Checkweigher SC3-10060L30

Model: SC3-10060L30

Item specifics

Weighting range: 1-30kg

Belt speed: 5-60m/min

Weighting accuracy: ±15-30g

Weighting section size: L 1000mm*W 600mm

Applicable product size: L≤750mm; W≤600mm

Rejection mode: Customized

Review

Description

Detail Information

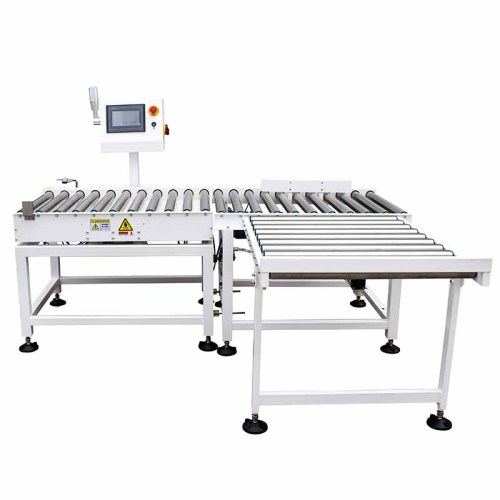

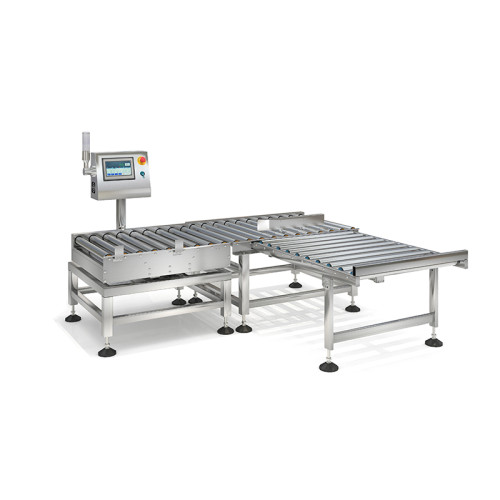

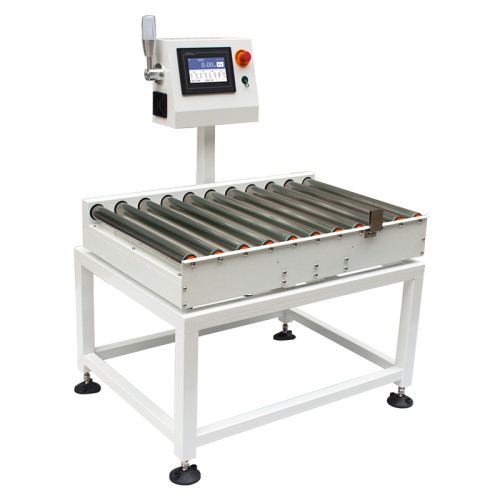

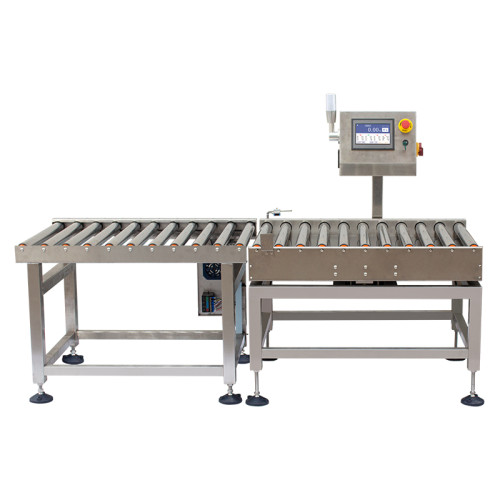

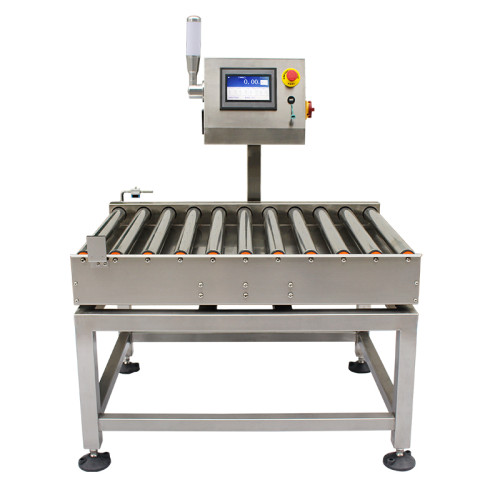

Dynamic Roller Checkweigher SC3-10060L30

Introduction

The SC3-10060L30 Dynamic Roller Checkweigher is an advanced automatic checkweigher machine designed for high-volume, heavy-weight product lines. This checkweigher for large packages offers precise and efficient weight inspection, especially for missing item detection in full cartons. With seamless integration into inline conveyor scale systems, it ensures real-time quality control. Ideal for industries such as food, pharma, electronics, and daily chemicals, this full case checkweigher supports multi-language UI, ERP/MES integration, and remote access. A powerful addition to modern checkweigher systems, SC3-10060L30 meets the highest standards for checkweigher machines.

Dynamic Roller Checkweigher SC3-10060L30 Features

High Load Capacity

Handles up to 30kg, making it ideal for full carton weight checks and detecting missing items like bottles, cans, or pouches.

Smooth Roller Integration

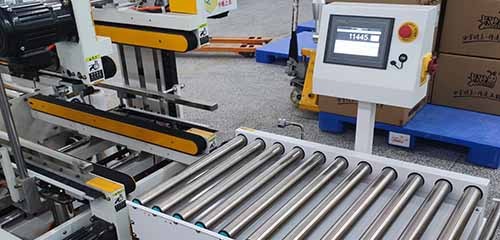

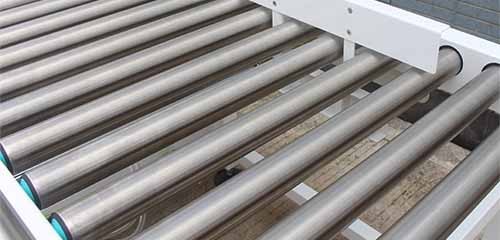

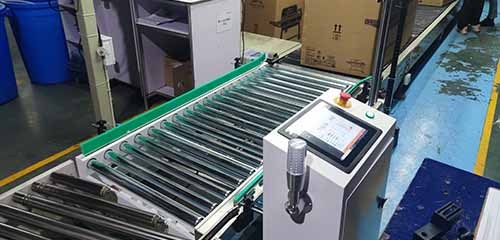

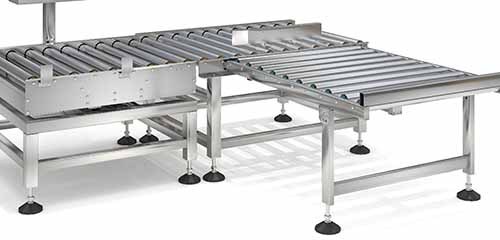

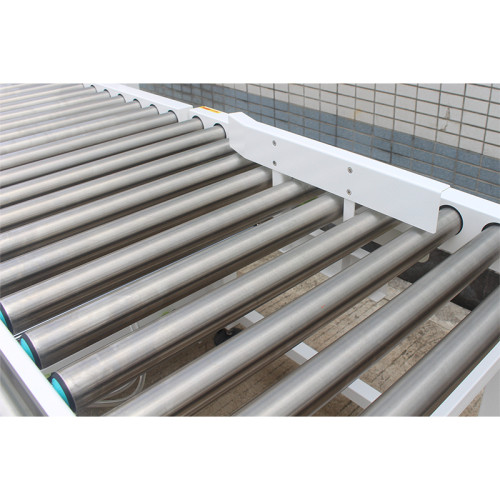

Equipped with a durable roller conveyor, it smoothly integrates with automated packaging lines and inline conveyor systems.

Smart Data Handling

Stores 100 product profiles and logs up to 30,000 records; supports Excel report export for seamless data traceability.

Versatile Connectivity

Features RS232/485 and Ethernet ports; easily integrates with factory ERP and MES systems for real-time production management.

Multilingual & Remote Control

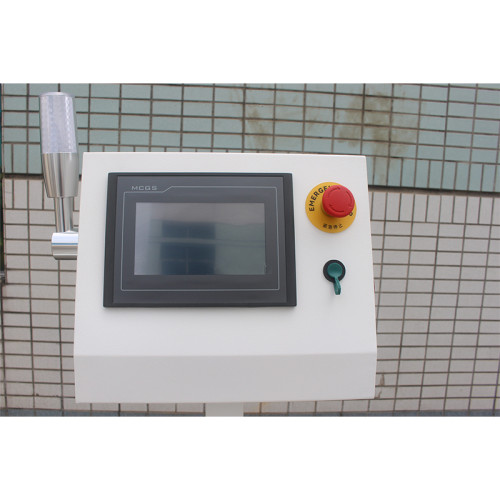

10-inch touch screen interface, multi-language support (default Chinese and English) and role-based user access.

Strict Quality Monitoring

Built-in three-color alarm light and multi-level access control ensure secure operations and precise quality assurance on the line.

Dynamic Roller Checkweigher SC3-10060L30

Technical Parameters

Product model	SC3-10060L30
Weighting range	1-30kg
Weighting section size	L 1000mm*W 600mm
Belt speed	5-60m/min
Air pressure interface	Φ8mm
Case material	Spray painting on carbon steel
Conveying direction	Facing the machine, left in and right out
Display division	10g
Weighting accuracy	±15-30g
Applicable product size	L≤750mm; W≤600mm
Storage formula	100 types

Power supply	AC220V±10%
Air source	0.5-0.8MPa
Data transmission	USB data export
Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Push rod type, swing wheel type, jacking transplanting are optional
Optional function	Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling
Operation screen	7-inch Kunlun Tongtai color touch screen
Control system	Samegram online weighing control system V1.0.5
Other configurations	Mean Well power supply, Jingyan motor, stainless steel roller, AVIC electrical sensor

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
