Tray Weight Sorting Machine SWSR-750TC6
- Model
- SWSR-750TC6
Item specifics
- Weighting range
- 1-2000g
- Sorting speed
- 1-300m/min
- Weighting accuracy
- ±0.3-2g
- Tray size
- 145×70×50mm
- Applicable product size
- L≤100mm; W≤65mm
- Sorting port number
- 6-20 grades customizable
Review
Description
Detail Information

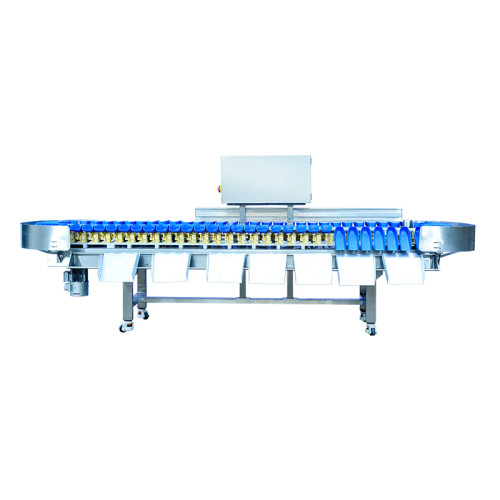

Tray Weight Sorting Machine SWSR-750TC6
Introduction
The SWSR-750TC6 is a food-grade weight sorter machine crafted from 304 stainless steel with IP65 waterproof protection, designed as a high-performance fish weight sorting machine and versatile weight sorting machine for lightweight food products up to 200g. Its tray-based system ensures gentle handling, making it ideal for delicate items like fish, seafood, and poultry. Featuring multi-level automatic catchweighers with 6 to 20 customizable grading levels, this weight checking sorter replaces manual sorting, delivering superior speed, accuracy, and hygiene. Equipped with a password-protected, three-tier user access interface, the SWSR-750TC6 offers intelligent, scalable weight classification for high-throughput food processing environments.
Tray Weight Sorting Machine SWSR-750TC6
Features
Tray Weight Sorting Machine SWSR-750TC6
Technical Parameters
| Product model | SWSR-750TC6 |
| Weighting range | 1-2000g |
Tray size | 145×70×50mm |
Sorting speed | 1-300m/min |
Air pressure interface | 304 stainless steel |
Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤100mm; W≤65mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Sorting port number | 6-20 grades customizable |
Sorting method | Tipping bucket sorting |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor
|
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
