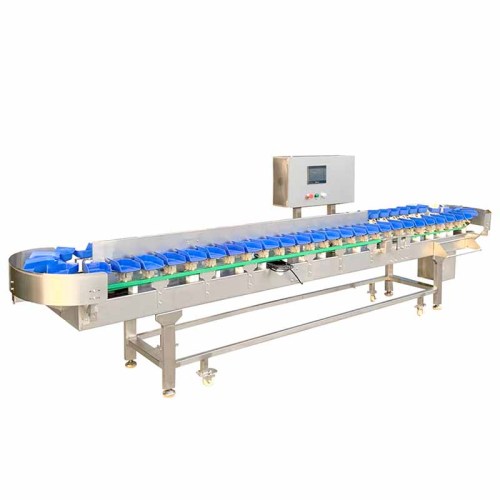

Tray-Based Automatic Weight Sorting Machine SWSR-750TC6 | High-Precision Fish & Lightweight Food Sorter
Introduction
The SWSR-750TC6 tray weight sorting machine is a high-precision fish weight sorting machine designed for delicate food items up to 200g. Its tray-based system ensures gentle handling of seafood, poultry, and lightweight products, reducing damage during sorting. Built from 304 stainless steel with IP65 waterproof protection, it guarantees hygienic operation in demanding food processing environments. This multistage weight sorting machine offers 6–20 customizable grading levels and replaces manual sorting for improved efficiency and accuracy. As a customized weight sorting machine and reliable weight checking sorter, it delivers intelligent, scalable automation ideal for modern factories.

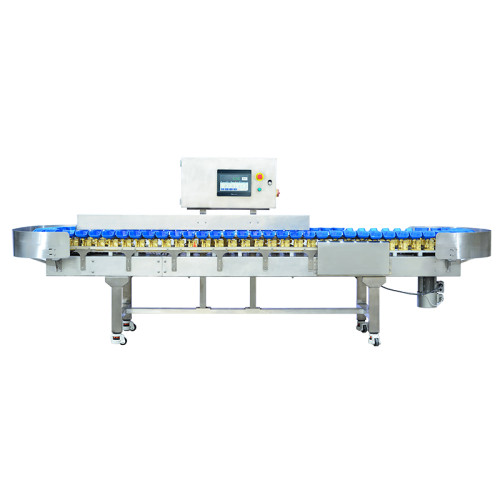

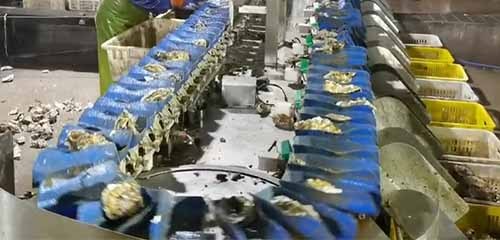

Tray Weight Sorting Machine SWSR-750TC6
Features

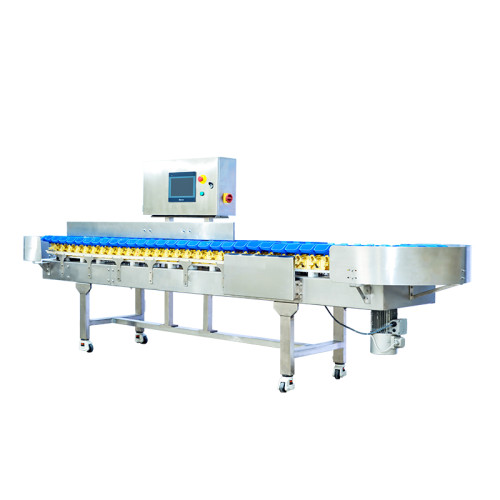

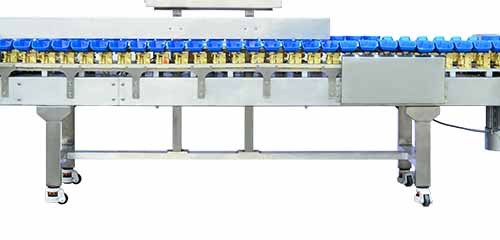

Tray Weight Sorting Machine SWSR-750TC6
Technical Parameters
| Product model | SWSR-750TC6 |
| Weighting range | 1-2000g |
Tray size | 145×70×50mm |
Sorting speed | 1-300m/min |
Air pressure interface | 304 stainless steel |
Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤100mm; W≤65mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Sorting port number | 6-20 grades customizable |
Sorting method | Tipping bucket sorting |
Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor
|
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
