Hygienic Checkweigher SCF-4523L3
- Model
- SCF-4523L3
Item specifics
- Weighting range
- 1-3000g
- Belt speed
- 5-90m/min
- Weighting accuracy
- ±0.3-2g
- Weighting section size
- L 450mm*W 230mm
- Applicable product size
- L≤300mm; W≤220mm
- Rejection mode
- Customized
Review
Description
Detail Information

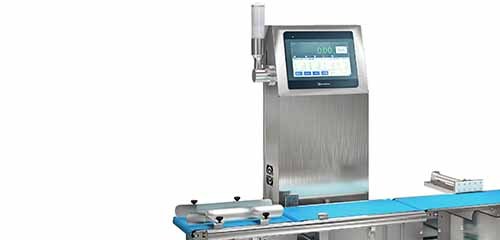

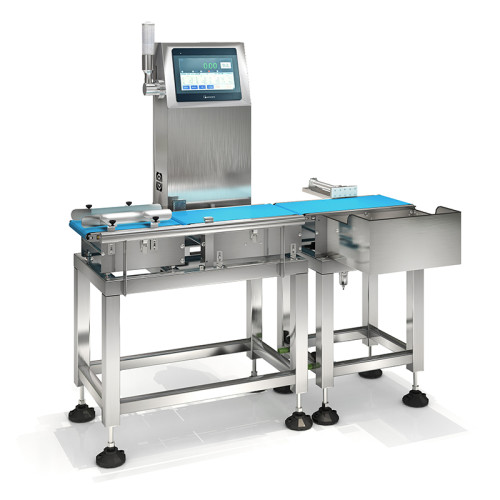

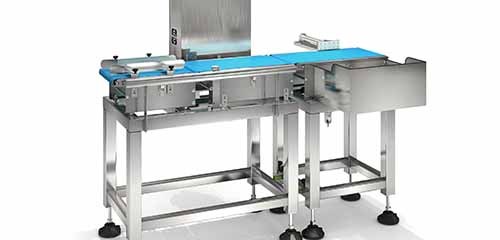

Hygienic Checkweigher SCF-4523L3
Introduction

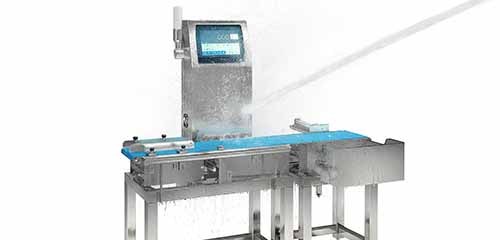

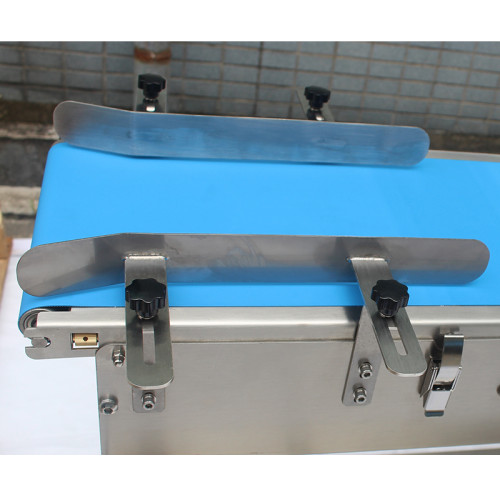

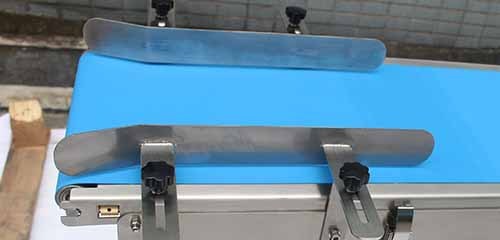

The SCF-4523L3 is a wet environment checkweigher designed for hygienic operations in the food industry. Featuring a fully enclosed safety guard, adjustable limiter plate, emergency stop, and touchscreen with three-tier access control, it enhances operational safety and usability. As a washdown checkweigher built with food-grade materials, it supports precision checkweighing in demanding production zones. Its variable-speed motor adapts easily to different workflows. This wet environment checkweighing system integrates smoothly with cartoners, fillers, and vertical packaging machines. SCF-4523L3 is the ideal hygienic design checkweighing system for high-accuracy food industry applications.

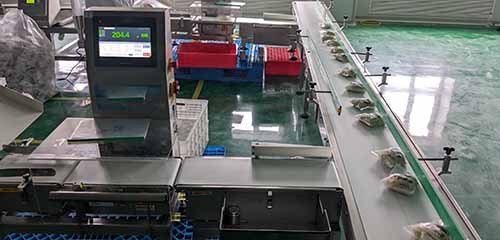

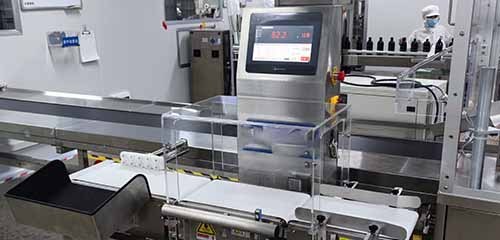

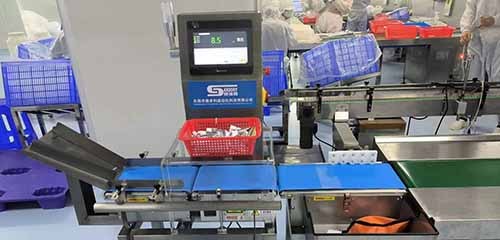

Hygienic Checkweigher SCF-4523L3 Applications
Hygienic Checkweigher SCF-4523L3
Technical Parameters
| Product model | SCF-4523L3 |
| Weighting range | 1-3000g |
Weighting section size | L 450mm*W 230mm |
Dimensions | 1300×900×1400mm（L×W×H） |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
| Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤300mm; W≤220mm |
Storage formula | 100 types |
Conveyor belt height from ground | 750mm |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transfer | USB data export |
Alarm mode | Sound and light alarm and automatic rejection |

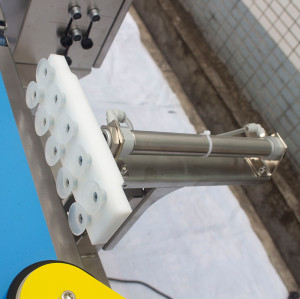

Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) |
| Optional function | Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling |

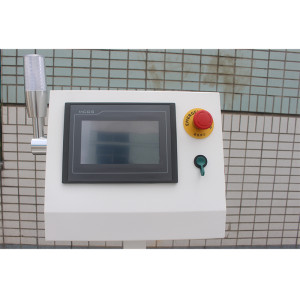

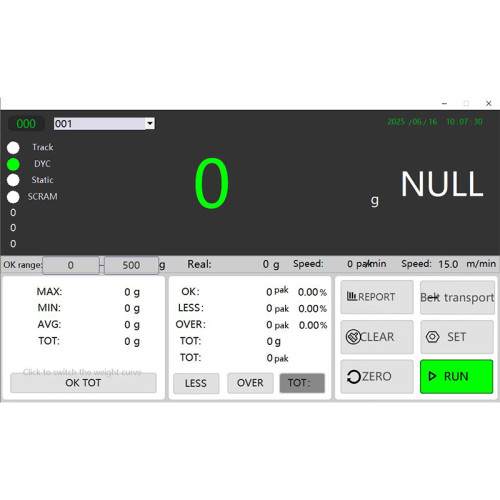

Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
