In-line Checkweigher SC-PR-4530L3

Model: SC-PR-4530L3

Item specifics

Weighting range: 1-3000g

Belt speed: 5-40m/min

Weighting accuracy: ±0.5-2g

Weighting section size: L 450mm*W 300mm

Applicable product size: L≤750mm; W≤600mm

Rejection mode: Customized

Review

Description

Detail Information

In-line Checkweigher SC-PR-4530L3

Introduction

The SC-PR-4530L3 is a precision checkweigher designed for color box packaging lines handling toys, small appliances, and consumer devices. As a dynamic checkweigher system for precision weighing, it installs directly onto existing conveyor lines without modification. With automatic feeding and compact structure, it enables efficient dynamic checkweighing for precision weighing tasks. Known as one of the best checkweighers for tight production spaces, it ensures reliable weight control and supports easy checkweigher calibration. In-line Checkweigher SC-PR-4530L3 is ideal for manufacturers seeking high-speed, space-saving solutions with consistent accuracy and compliance.

In-line Checkweigher SC-PR-4530L3

Features

Inline Precision Weighing

Designed for color box packaging lines with toys, appliances, and consumer goods.

Delivers high-speed dynamic parcel weighing with excellent accuracy.

No Conveyor Modification Needed

Installs directly onto existing production lines without structural changes.

Simplifies setup and reduces installation costs.

Compact, Space-Saving Design

The small footprint makes it ideal for tight production spaces.

Offers efficient parcel weigh control without sacrificing floor area.

Non-standard customization

The upper and lower weight limit parameters can be set arbitrarily，Set up in the middle of the assembly line, saving manpower and space

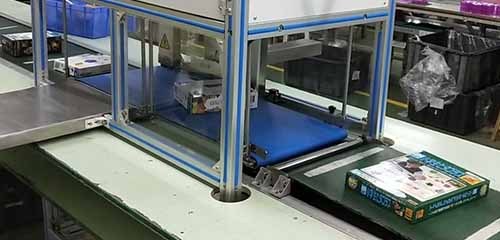

Accurate for Boxed Items

Calibrated for stable and precise weighing of boxed products.

Suitable for weighing scales for parcels in various shapes and weights.

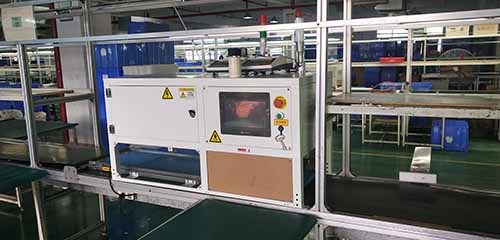

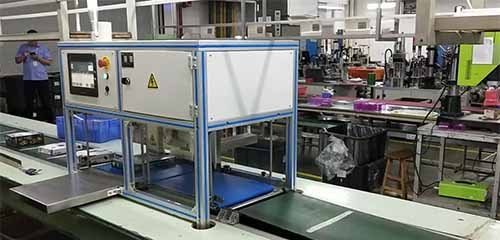

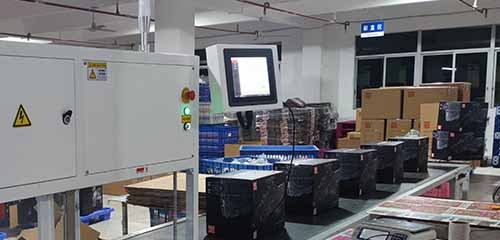

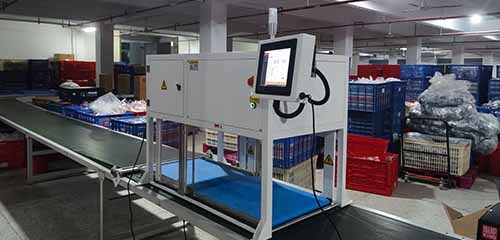

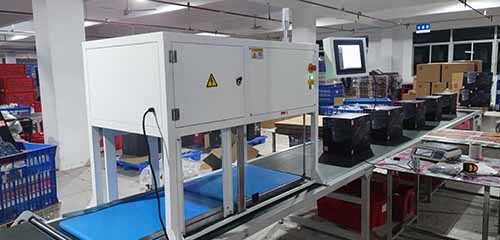

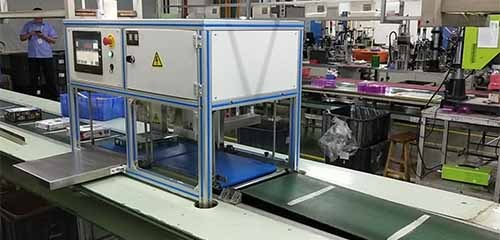

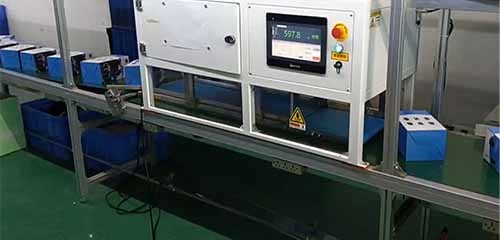

In-line Checkweigher can be seamlessly integrated into the production line

Seamless System Integration

Compatible with labeling, scanning, and sorting modules.

Builds a complete weighing solution using reliable parcel weighing scales.

In-line Checkweigher SC-PR-4530L3 Technical Parameters

Product model	SC-PR-4530L3
Weighting range	1-3000g
Weighting section size	L 450mm*W 300mm
Belt speed	5-40m/min
Case material	Carbon steel spray painting
Display division	0.1g
Weighting accuracy	±0.5-2g
Applicable product size	L≤750mm; W≤600mm
Storage formula	100 types

Power supply	AC220V±10%
Data transmission	USB data export
Sorting section	Standard 2 section。optional 3 sections
Alarm mode	Sound and light alarm and automatic rejection
Rejection mode	Pushrod and paddle type optional
Optional function	Real-time printing, code reading and sorting, online code spraying, online code reading, online labeling

* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
