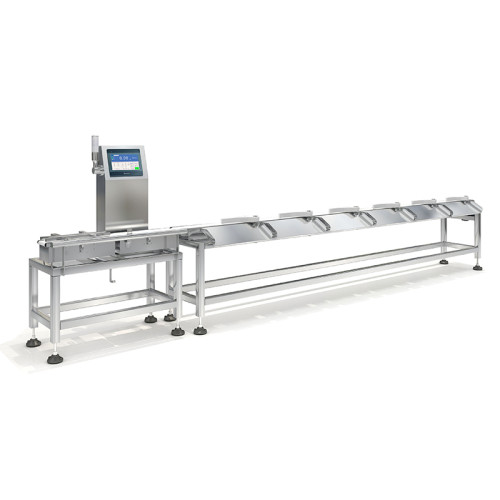

Automatic Weight Sorter SWSS-5012L2
Automatic Weight Sorter SWSS-5012L2
Automatic Weight Sorter SWSS-5012L2
Automatic Weight Sorter SWSS-5012L2
Automatic Weight Sorter SWSS-5012L2
Automatic Weight Sorter SWSS-5012L2
Model
SWSS-5012L2

Item specifics

Weighting range
1-2000g
Weighting section size
L500mm*W120mm
Belt speed
5-90m/min
Sorting port number
1-20 grade customizable
Weighting accuracy
±0.3-2g
Rejection mode
Air blowing, push rod, lever, up and down flip ...

Review

Description

Details

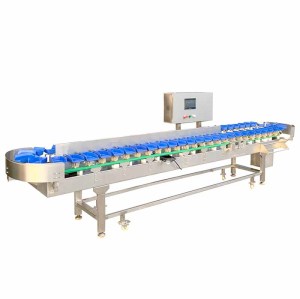

Automatic Weight Sorter SWSS-5012L2 Introduction

The SWSS-5012L2 is a compact, high-speed weigher ideal for automated weighing tasks. This advanced weighing scale provides accurate weight control in real time. As a reliable weigher, it ensures consistent product quality and quickly removes non-compliant products. It is designed for production lines with limited space and can be easily integrated into the production environment. The built-in weighing scale supports accurate detection and traceability. Suitable for food, pharmaceutical and small packaging, this weigher can improve efficiency and ensure compliance.

Automatic Weight Sorter SWSS-5012L2

Features

Automatic Weight Sorter with Food-Grade Compliance

Food-Grade Compliance

Fully meets CE, ISO, and hygiene standards; designed for sanitary zones with easy-to-clean surfaces.
Automatic Weight Sorter Supports flexible sorting from 1 up to 20 levels,

Sort level

Supports flexible sorting from 1 up to 20 levels, meeting diverse classification and packaging requirements.

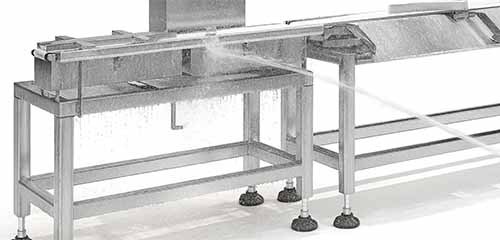

IP65 Waterproofing

IP65 Waterproofing

High protection against water and dust; operates reliably in humid, cold, or washdown environments.

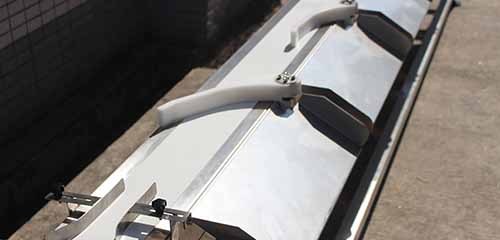

Precise Ejection

Precise Ejection

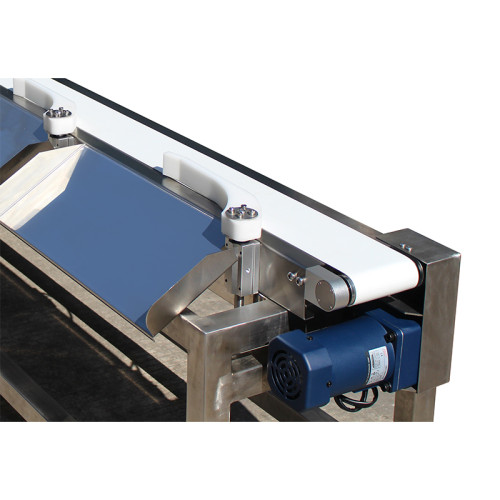

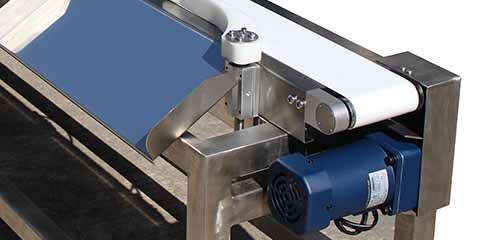

Multi-frequency motor ensures accurate, stable product ejection with minimal impact or mis-sorting.

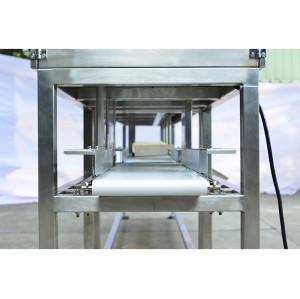

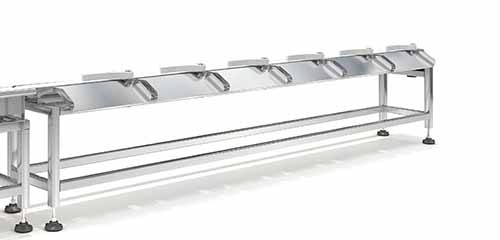

Automatic Weight Sorter with Flexible Layout

Flexible Layout

Modular conveyors and reject bins adapt easily to different product sizes and production line setups.

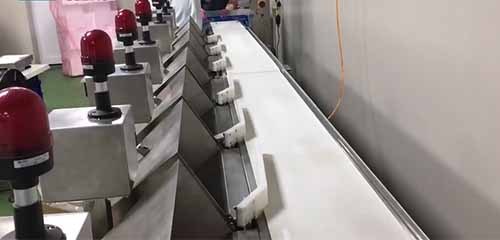

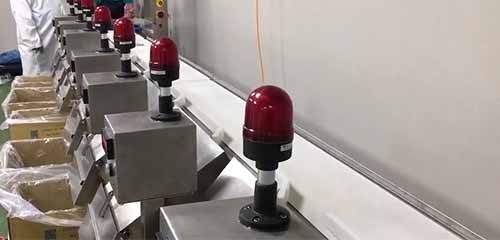

Automatic Weight Sorter with Individual Channel Alerts

Individual Channel Alerts

Each grade has a red light to indicate jams, full bins, or misroutes, enabling quick fault detection and response.

Automatic Weight Sorter SWSS-5012L2

 Technical Parameters

Product model
SWSS-5012L2
Weighting range
1-2000g
Weighting section size
L500mm*W120mm
Belt speed
5-90m/min
Air pressure interface
φ8mm
Case material
304 stainless steel
Conveying direction
Facing the machine, left in and right out
Display division
0.1g
Weighting accuracy
±0.3-2g
Applicable product size
L≤350mm;W≤120mm
Storage formula
100 types
Power supply
AC220V±10%
Air source
0.5-0.8MPa
Data transmission
USB data export
Sorting port number
1-20 grade customizable
Rejection mode
Air blowing, push rod, lever, up and down flip plate, turntable type optional

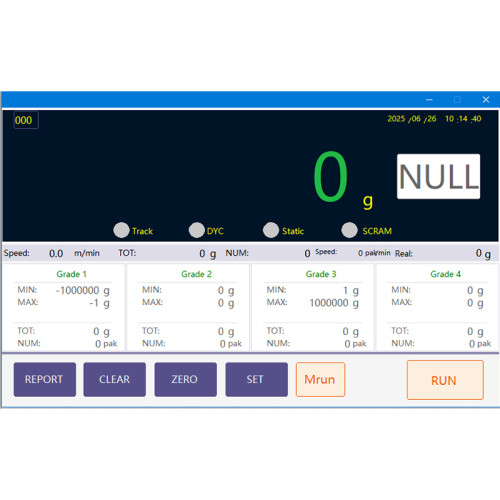

Operation screen
10-inch Weiluntong color touch screen
Control system
Samegram online weighing control system V1.0.5
Other configurations
Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.

File Downloads

For more product related parameter files, please contact us.

Automatic Weight Sorting Machine Applications

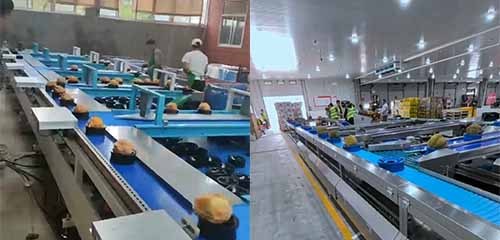

Fresh Fruits Sorting

Fresh Fruits Sorting

Automatically classifies durians or peachs into multiple weight grades for retail packaging or market pricing.
Automatic Weight Sorting Machine to Chicken Parts Grading

Chicken Parts Grading

Sorts chicken breasts or thighs by weight into set ranges for tray packing or wholesale distribution.
Seafood Weight Selection

Seafood Weight Selection

Weighs and sorts shrimp, scallops, or fish fillets for export packaging with predefined weight grades.
Detail Information

Want a Custom Configuration for Your Production Line?

Contact us to learn more about how the  Weight Sorter SWSS-5012L2 can simplify your quality assurance process.
