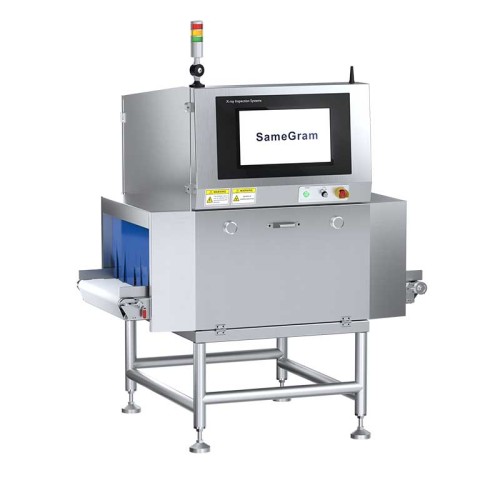

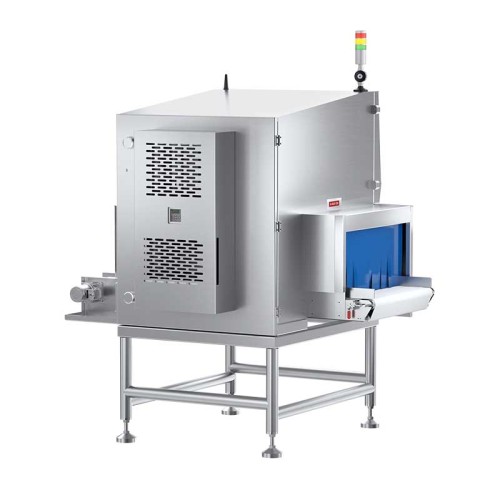

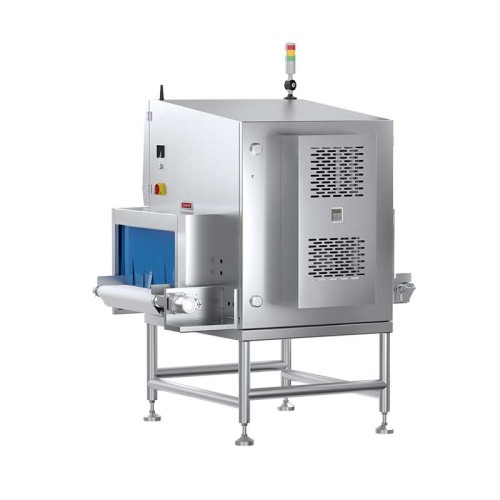

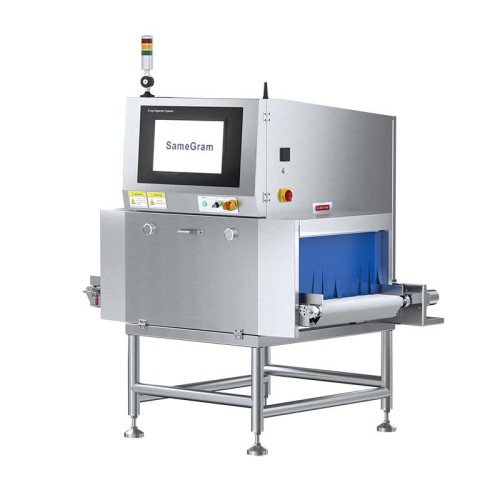

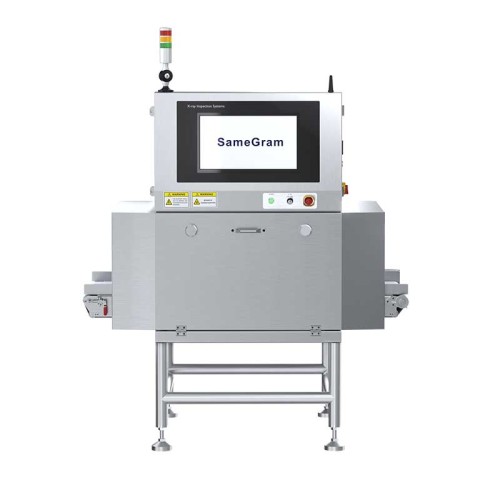

Standard Machine for X-ray Inspection System of Bagged Products CSS series

Introduction

Leverage Sooview's AI-powered ZeroShot-SvDetector deep learning algorithm with this advanced automated x-ray inspection system. Designed specifically for the x-ray inspection systems food industry, this versatile x ray inspection machine accurately detects a wide range of foreign objects—including metal, glass, ceramic, and stone—and verifies package seal integrity in real-time. It's the ideal x-ray machine for food inspection and a reliable x-ray food inspection system for packaged product, offering stable performance across small, medium, and large packages, and featuring 4G connectivity for fast remote support. Secure your brand reputation with a high-precision x ray food inspection systems solution.

X-ray Inspection System of Bagged Products CSS series Features

Multi-Lane Checkweigher with Flexibility

Proprietary AI Algorithm

Utilizes the unique ZeroShot-SvDetector deep learning algorithm for customized foreign object detection solutions for various packaged products.

Superior Precision and Stability of multi-lane checkweigher

Dual Inspection Capability

Detects foreign objects and verifies package seal integrity (e.g., pinched material or damage) with multiple rejection methods.

the multihead checkweigher conform to GMP-Compliant Design

Comprehensive Detection Range

Capable of detecting multiple types of foreign objects, including metal, glass, ceramics, stones, rubber, and hard plastics.

Customizable Checkweigher Up to 20 Lanes

Intelligent Auto-Rejection

AI instantly identifies foreign objects, pinched material, and broken bags, automatically rejecting defective products with stable performance for large and medium-sized packages.

The multi-lane checkweighers is Compact and Modular Construction

Flexible Connectivity

Supports multiple connection methods, including 4G wireless and wired networks, for remote technical support and operation.

The multi lane checkweigher has Massive Data Storage and Traceability

Wide Application Scope

Ideal for a broad range of food products, including snack foods, sauces/seasonings, meat products, frozen foods, and dairy products.

X-ray Inspection System of Bagged Products CSS Series Technical Parameters

Model	XSS-2410	XSS-4016	XSS-6030	XSS-6040	XSS-7040
X-ray Source (Unit: W)	210	240	240/350	240/350	350
Detector Resolution	0.4mm (unloaded; actual accuracy may vary depending on the sample material and is subject to testing)
Inspection Accuracy	SUS sphere:0.4mm,glass:1.0mm, ceramic: 1.0mm, SUS wire: 0.2*5mm
Operating Software	Self-developed Sooview detection software
Human Machine lnterface	21.5-inch touchscreen
Conveyor Belt Speed	10-60 m/min
Inspection Weight	<10Kg
Inspection Dimensions	240*50mm	400*120mm	600*200mm	600*300mm	700*300mm
Power Supply	AC 220V2.0kw 50hz
Temperature and Humidity	Ambient temperature 0~45'C,relative humidity 30~85%(non-condensing)
Waterproof Rating	Conveyor is lP66, other parts are lP54
Equipment Materials	304 stainless steel, brushed finish

File Downloads

For more product related parameter files, please contact us.

Checkweigher Product Specification Sheet—SCP6（1.6 MB）

X-ray Inspection System of Bagged Products Applications

Pharmaceuticals

Tablet or capsule bottle weight control, blister packaging verification.

Food and Beverage

Packaged snacks, instant foods, bottled or canned foods.

Health and Wellness

Supplements, nutrition bags, health sets.
