Aluminum Foil Pack Metal Detector DD-220
- Model
- DD-220
Item specifics
- Passing height
- 300 (customizable)
- passing width
- 100;120;150;200;300;350;400
- Standard detection sensitivity：magnetic ball
- 0.6;0.8;1.0;1.2;1.5;2.0;2.5;3.0
- Standard detection sensitivity：stainless steel bal
- 2.5;3.0;3.0;3.5;3.5;3.5;4.0;4.0
- Belt speed
- 27 m/min
- Body size
- 1400×750×1100mm
Review
Description
Detail Information

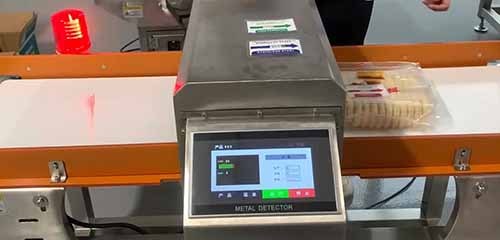

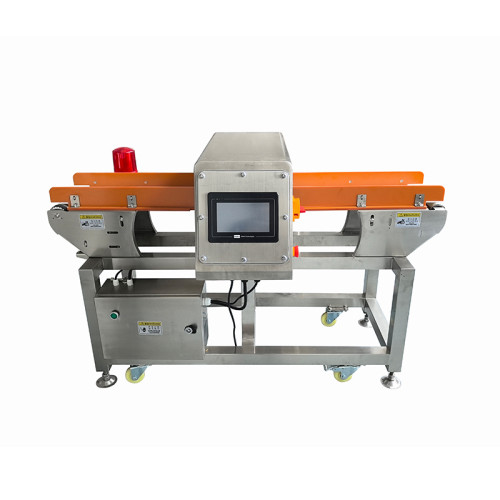

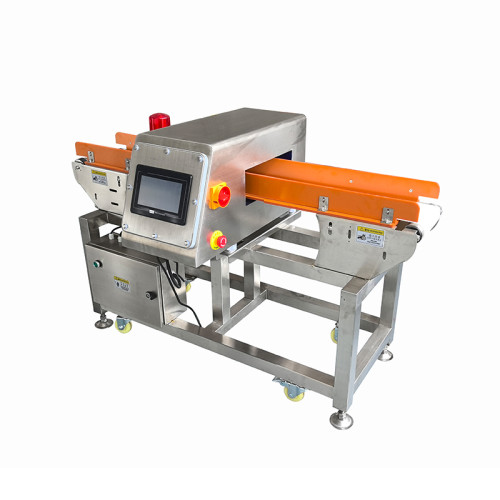

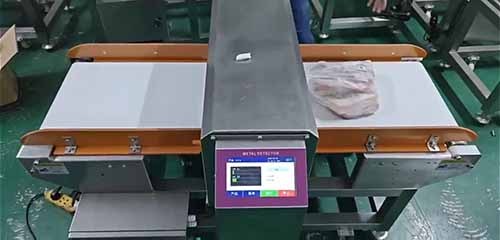

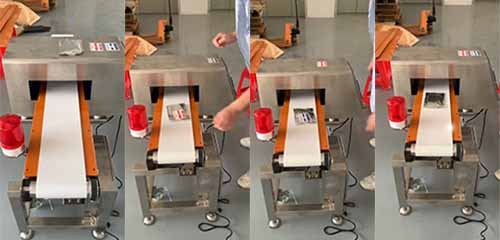

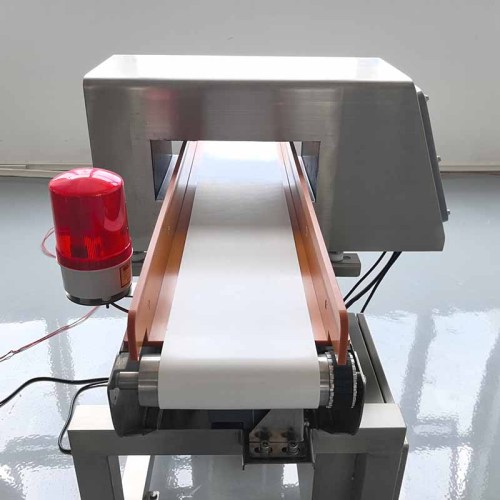

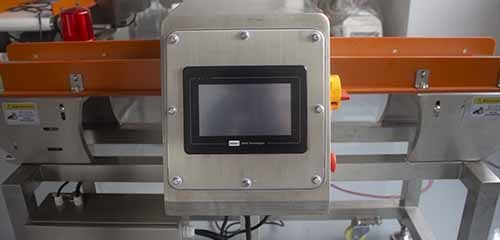

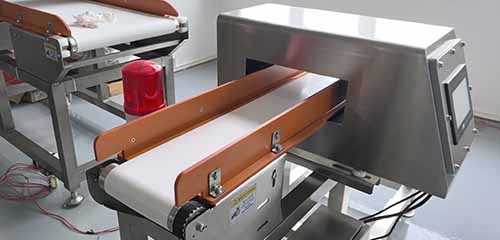

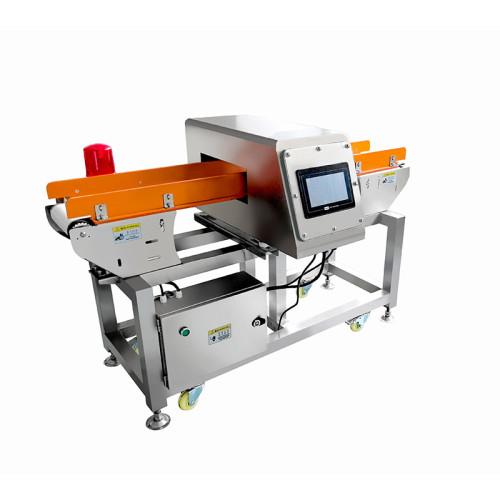

Aluminum Foil Pack Metal Detector DD-220
Introduction
The DD-220 Aluminum Foil Pack Metal Detector is designed for detecting ferrous metal contaminants in products packaged in aluminum foil or metallized films. This food metal detector is installed in conveyor systems, ensuring high-precision detection with minimal impact on the production line. Utilizing advanced multi-coil technology, it delivers excellent sensitivity while maintaining a compact and space-efficient design. With a maximum load capacity of 5kg, it complies with IFS and HACCP certifications, offering customizable rejection mechanisms (such as flap, reverse belt, or pusher). Ideal for food processing, pharmaceuticals, and other industries, this system ensures reliable metal contamination detection in packaged products.

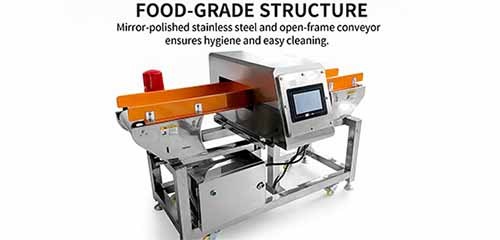

Aluminum Foil Pack Metal Detector DD-220 Features
Aluminum Foil Pack Metal Detector DD-220
Technical Parameters
| Product model DD-220 series | 3008;3012;4008;4010;4012;4015;4020;4025. |
| Passing height | 300 (customizable) |
passing width | 100;120;150;200;300;350;400 |
Standard detection sensitivity：magnetic ball | 0.6;0.8;1.0;1.2;1.5;2.0;2.5;3.0 |
Standard detection sensitivity：stainless steel ball | 2.5;3.0;3.0;3.5;3.5;3.5;4.0;4.0 |
| Machine materials | 304 stainless steel |
| Belt speed | 27 m/min |
Applicable environment | Temperature: 18-50ºC, Humidity: 30-90% |
Body size | 1400×750×1100mm |
Machine weight | About 200KG |

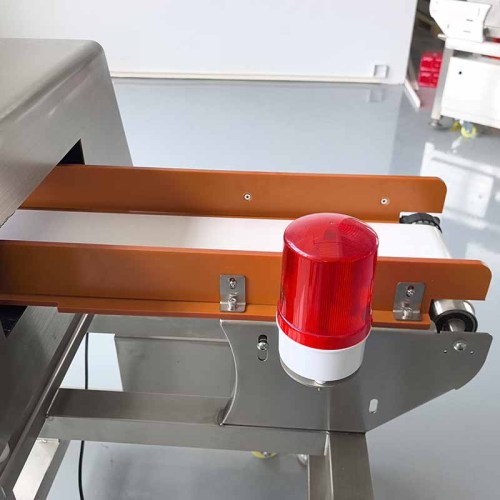

Alarm mode | The conveyor belt stops automatically when the sound and light alarm is sounded. When the automatic rejection structure is selected, the conveyor belt stops automatically. |
* The above sensitivity parameters are the test results when the machine is empty and has no environmental interference. The actual application may be slightly different due to the interference of the use environment and the composition of the object being tested.
File Downloads
For more product related parameter files, please contact us.
