Gravity Fall Metal Separator HC-700
- Model
- HC-700
Item specifics
- Feeding method
- Free-fall detection of raw materials
- Temperature Environment
- -8 to 80 degrees
- Part in contact with raw materials
- Nylon, stainless steel, aluminum
- Processing volume
- 700-800kg/hr
- Compressed air
- 3~6bar, 8mmΦ
- Gas consumption
- 0.4 liters per separation action
Review
Description
Detail Information

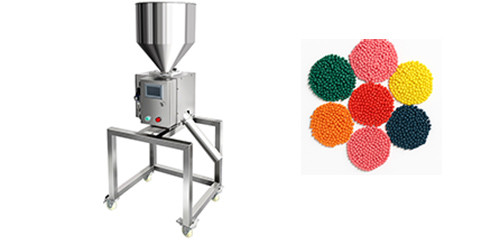

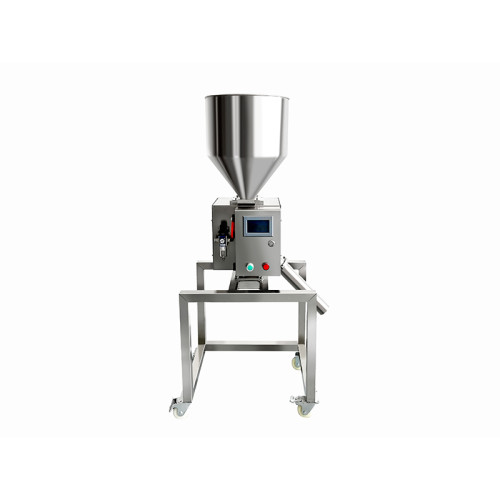

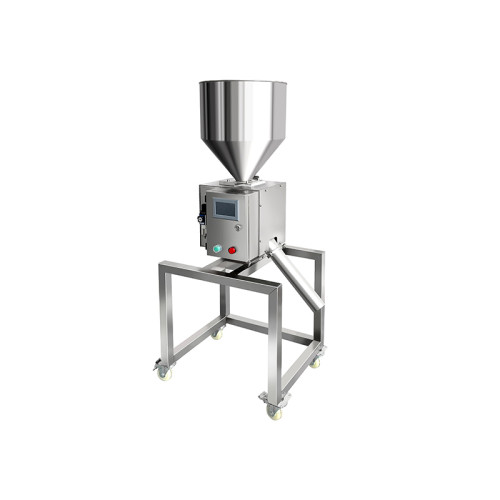

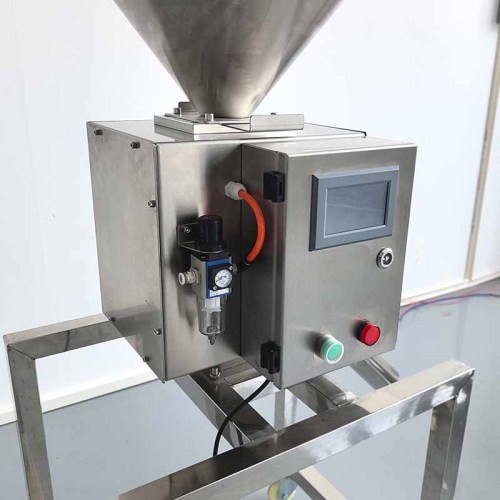

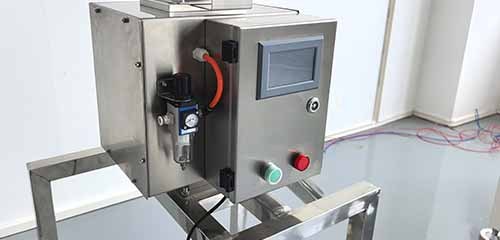

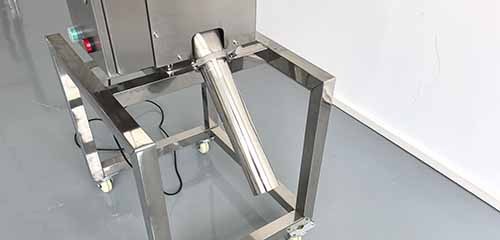

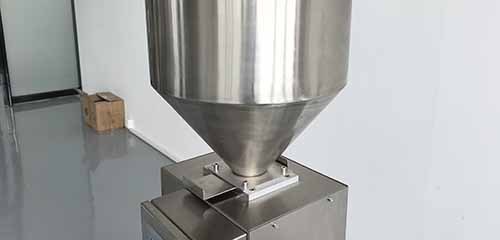

Gravity Fall Metal Detector HC-700
Introduction

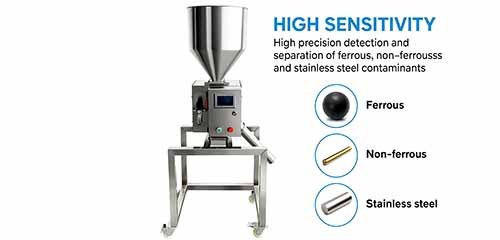

The Gravity Fall Metal Detector is designed for the inspection and removal of all metal contaminants—including ferrous, non-ferrous, and stainless steel—during the processing of powders and granules. This free-fall metal separator ensures safe and clean product flow by detecting and separating even the tiniest metal particles. As a trusted China gravity fall metal detector, it helps reduce downtime, avoid costly recalls, and improve production efficiency. Our gravity free fall metal detector complies with international food safety standards and is widely used in industries requiring high detection precision. A reliable free fall metal detector and metal separator for protecting downstream equipment and consumer safety.
Gravity Fall Metal Detector HC-700 Features
Gravity Fall Metal Detector HC-700
Technical Parameters
| Product model | HC-700 |
| Feeding method | Free-fall detection of raw materials |
Temperature Environment | -8 to 80 degrees |
Machine shell | SUS304 |
Detect material temperature | ≤80 degrees |
Part in contact with raw materials | Nylon, stainless steel, aluminum |
Compressed air | 3~6bar, 8mmΦ |
| Total power | 10W |
Power cord | 3m |
Gas consumption | 0.4 liters per separation action |
| Detection accuracy | The volume of the metal particles is 0.4mm in diameter and can be adjusted according to actual conditions. |

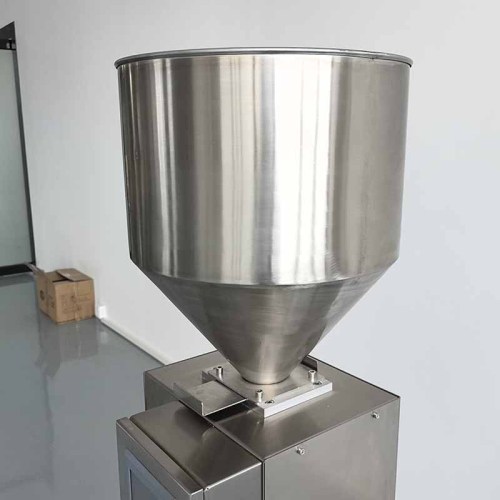

| Body Metal Separator Dimensions（Except racks and hoppers） | 323*245*363（mm） |
Reaction time | 0.3 to 5s, the longer the time, the more waste will be discharged |
Processing volume | 700-800kg/hr |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
