Three-Axis Automatic Labeler SL3
- Model
- SL3
Review
Description
Detail Information

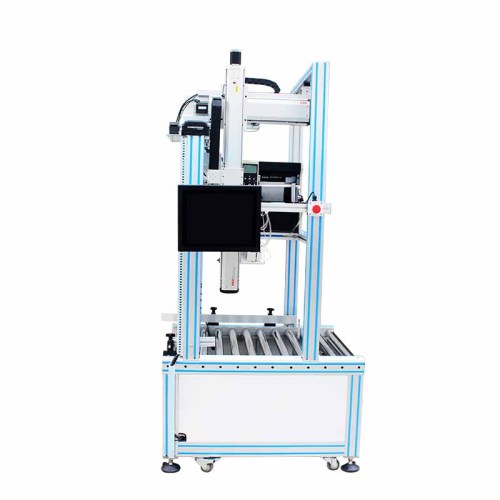

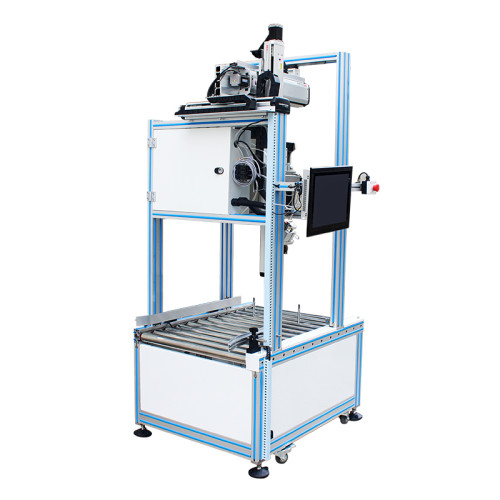

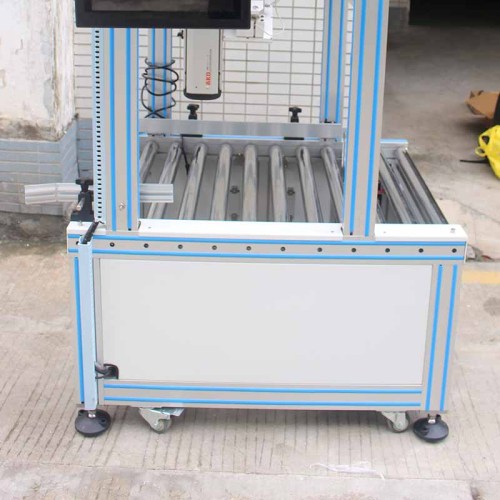

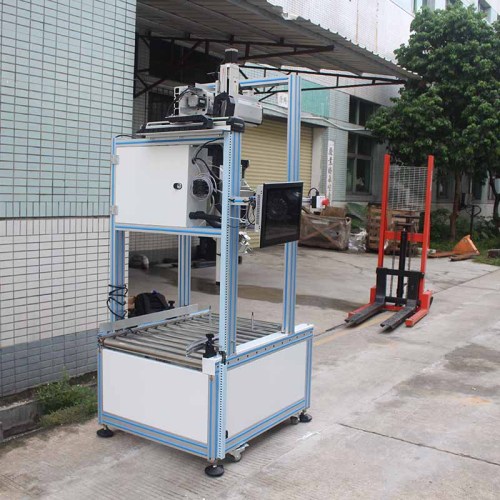

Three-Axis Automatic Labeler SL3
Introduction
The Weigh Price Labeller with Multi-Axis SL3 is an advanced automatic labeler machine ideal for compact production spaces. Designed to solve the footprint issues of traditional models, this automatic label applicator machine offers wide labeling coverage while maintaining a small installation area. It supports fast switching between product types and works efficiently as an automatic bottle labeling machine, automatic wire labeling machine, or automatic jar labeling machine. The SL delivers precise labeling with minimal adjustment, making it a reliable automatic labelling machine for diverse industries with limited factory space and high SKU complexity.
Three-Axis Automatic Labeler SL3 Features
Compact, Space-Saving Design
Three-axis structure significantly reduces footprint.
Perfect for factories with limited installation space.
Versatile Labeling Compatibility
Functions as an automatic bottle, jar, and wire labeling machine.
Supports round, flat, and irregular product surfaces.
Flexible Product Switching
Quick-change setup enables rapid shift between SKUs.
Ideal for short-run and high-mix production lines.
High Precision Labeling
Advanced control system ensures accurate label placement.
Reduces rework and enhances product presentation.
Full Automation & Integration Ready
Seamlessly connects to upstream and downstream equipment.
Reduces labor and increases line efficiency.
Intuitive Touchscreen Control
User-friendly interface supports multilingual operation.
Easy to set parameters, monitor status, and adjust on the fly.
Three-Axis Automatic Labeler SL3
Technical Parameters
| Product model | SL3 |
| Labeling accuracy | ±2-20mm |
Printer | Zebra, TSC, Honeywell optional |
Labeling part | Flat top, optional sides |
Resolution | 203/300/600dpi |
Ribbon width | 25.4~107mm；thickness0.06~0.3mm |
| Overall dimensions | 800×670×1600mm（Customizable） |
| Label width | 20-140mm |
| Label length | 20-200mm |
Labeling type | Push type |
Labeling speed | 20-40p/min |
Print width | 16-104mm |
Paper ejection method | Left/right |
Print length | 20-990mm |
Printing speed | 305mm/s(203dpi)
254mm/s(300dpi) |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
