Dual-Layer Automatic Weight Sorting Machine SWSD-4523L2 | Waterproof Multistage Weight Sorter
- Model
- SWSD-4523L2
Item specifics
- Weighting range
- 1-2000g
- Belt speed
- 5-90m/min
- Weighting accuracy
- ±0.3-2g
- Weighting section size
- L 450mm*W 230mm
- Applicable product size
- L≤300mm; W≤230mm
- Sorting port number
- 1-20 grade customizable
Review
Description
Detail Information
Dual-Layer Automatic Weight Sorting Machine SWSD-4523L2 | Waterproof Multistage Weight Sorter
Introduction

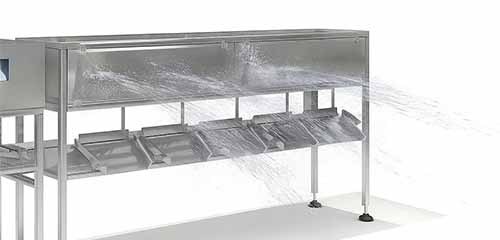

The SWSD-4523L2 dual-layer automatic weight sorting machine is engineered for precise weight classification in food and seafood processing. This waterproof multistage weight sorting machine features a sealed upper motor housing for enhanced durability in wet environments. Designed as a fish weight sorting machine, it is also ideal for shrimp, poultry, and meat applications. As a China conveyor belt weight sorter machine, it ensures smooth and hygienic operation with high accuracy. We provide customized weight sorting machines for different production lines, making this automatic weight sorter machine a reliable choice for modern food factories.

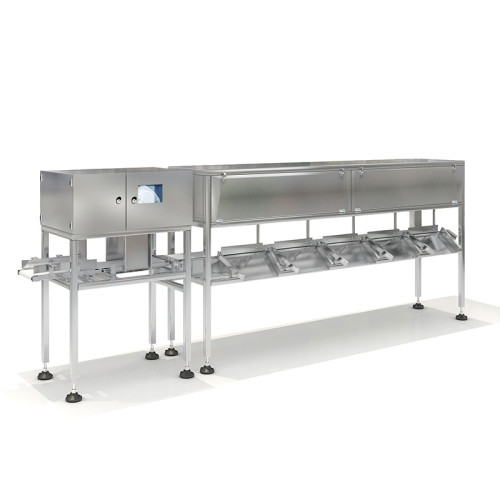

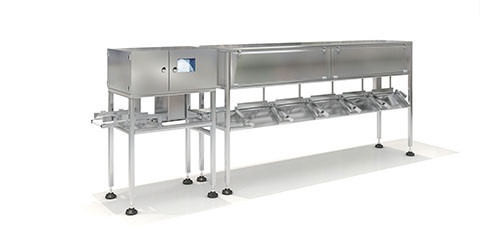

Dual-Layer Automatic Weight Sorting Machine SWSD-4523L2
Features

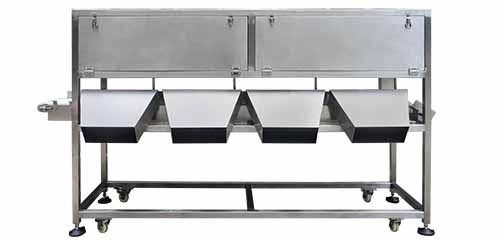

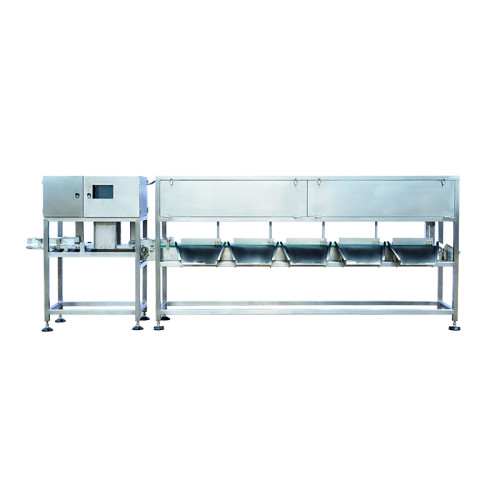

Dual-Layer Automatic Weight Sorting Machine SWSD-4523L2
Technical Parameters
| Product model | SWSD-4523L2-C6 |
| Weighting range | 1-2000g |
Weighting section size | L 450mm*W 230mm |
Belt speed | 5-90m/min |
Air pressure interface | Φ8mm |
Case material | 304 stainless steel |
Display division | 0.1g |
| Weighting accuracy | ±0.3-2g |
| Applicable product size | L≤300mm; W≤230mm |
Storage formula | 100 types |
| Power supply | AC220V±10% |
Air source | 0.5-0.8MPa |
Data transmission | USB data export |
Sorting port number | 1-20 grade customizable |
Rejection mode | Air blowing, push rod, swing arm, drop, up and down flip, etc. (customizable) |

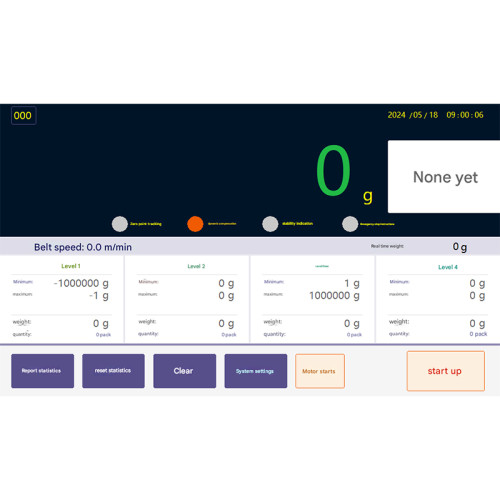

Operation screen | 10-inch Weiluntong color touch screen |
Control system | Samegram online weighing control system V1.0.5 |
Other configurations | Meanwell power supply, Jingyan motor, Swiss PU food conveyor belt, NSK bearing, Mettler Toledo sensor |
* The maximum checkweighing speed and accuracy may vary depending on the actual product being tested and the installation environment.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
* When selecting the model, pay attention to the direction of product movement on the conveyor belt. For transparent or semi-transparent products, please contact our company.
File Downloads
For more product related parameter files, please contact us.
